🔥 TEYES CC4 Pro – Full Specifications

🚀 CPU & Performance

• CPU Model: QCM6490
• Architecture: Octa-core Qualcomm Snapdragon
  (1×A78 2.7GHz + 3×A78 2.4GHz + 4×A55 1.9GHz)
• Process Technology: 6nm
• GPU: Adreno 643 (~900 GFLOPS)
• NPU (AI): ~12 TOPs

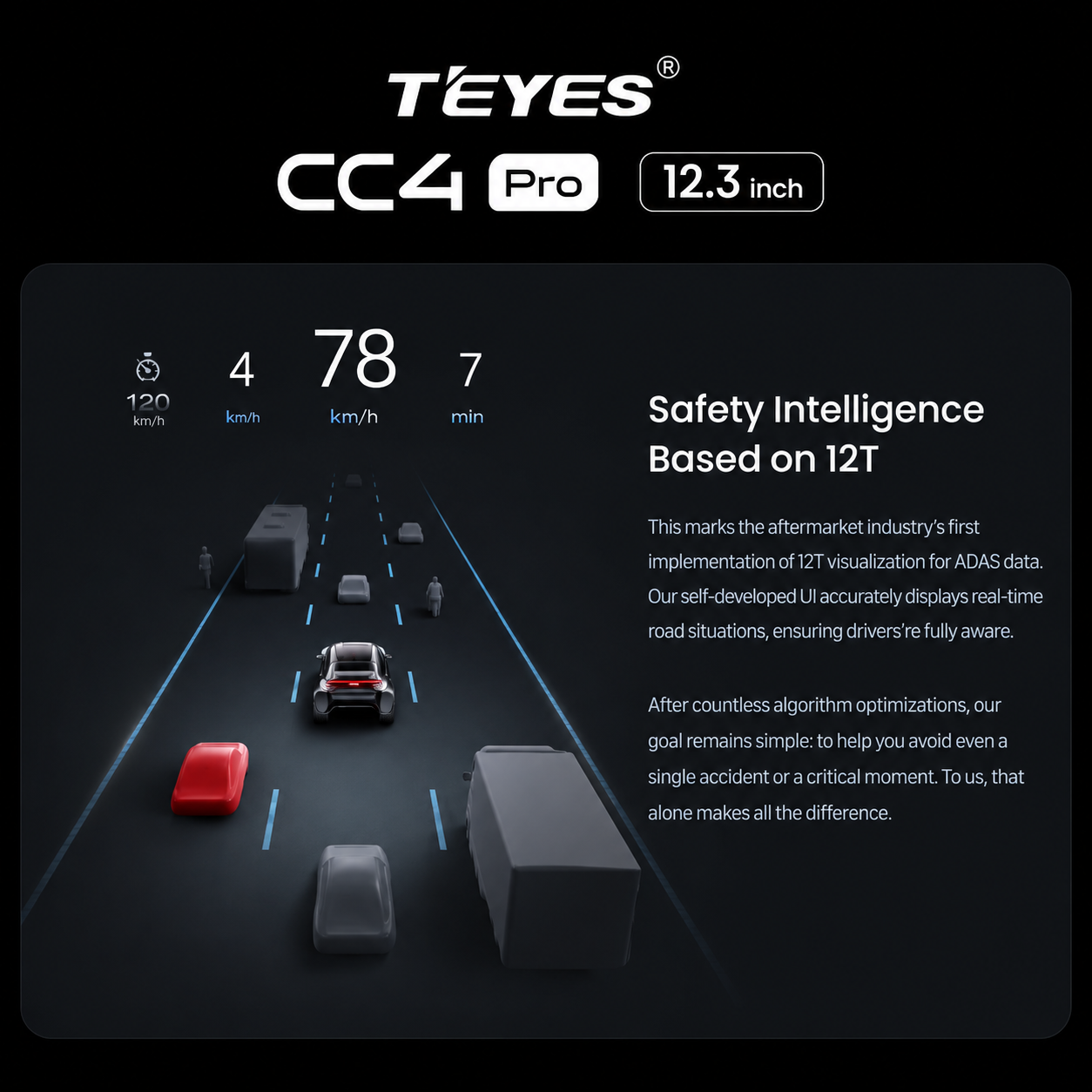

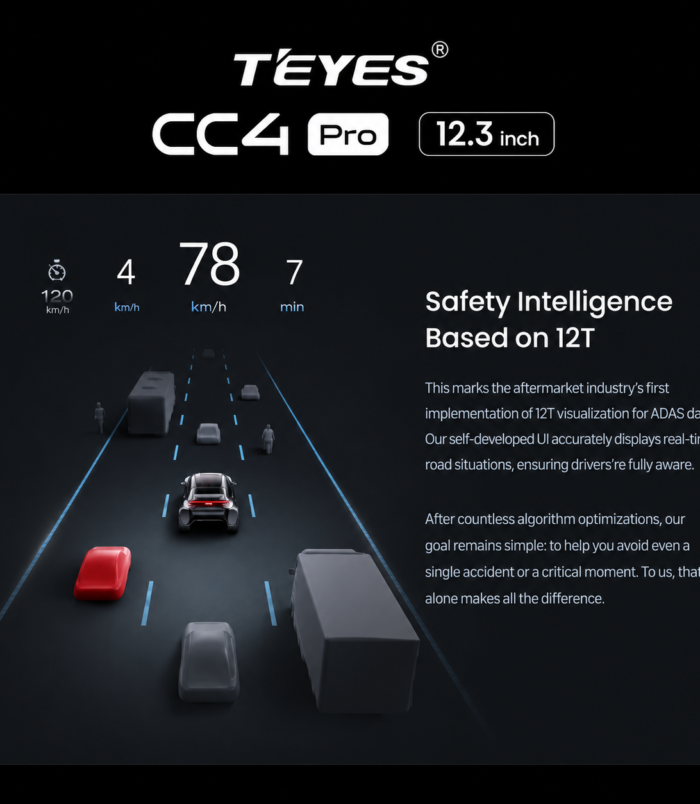

• ADAS: Supported
• AnTuTu Benchmark: ~670,000

💻 Operating System

• OS Version: Teyes OS based on Android 13
• Mode: Classic Mode + Free Mode

⚡ Storage & Memory

• Storage Type: LPDDR5 + UFS 3.1
• RAM + ROM: 12GB+256GB

🚀 Storage Speed

• Read Speed: ~2114 MB/s
• Write Speed: ~546 MB/s

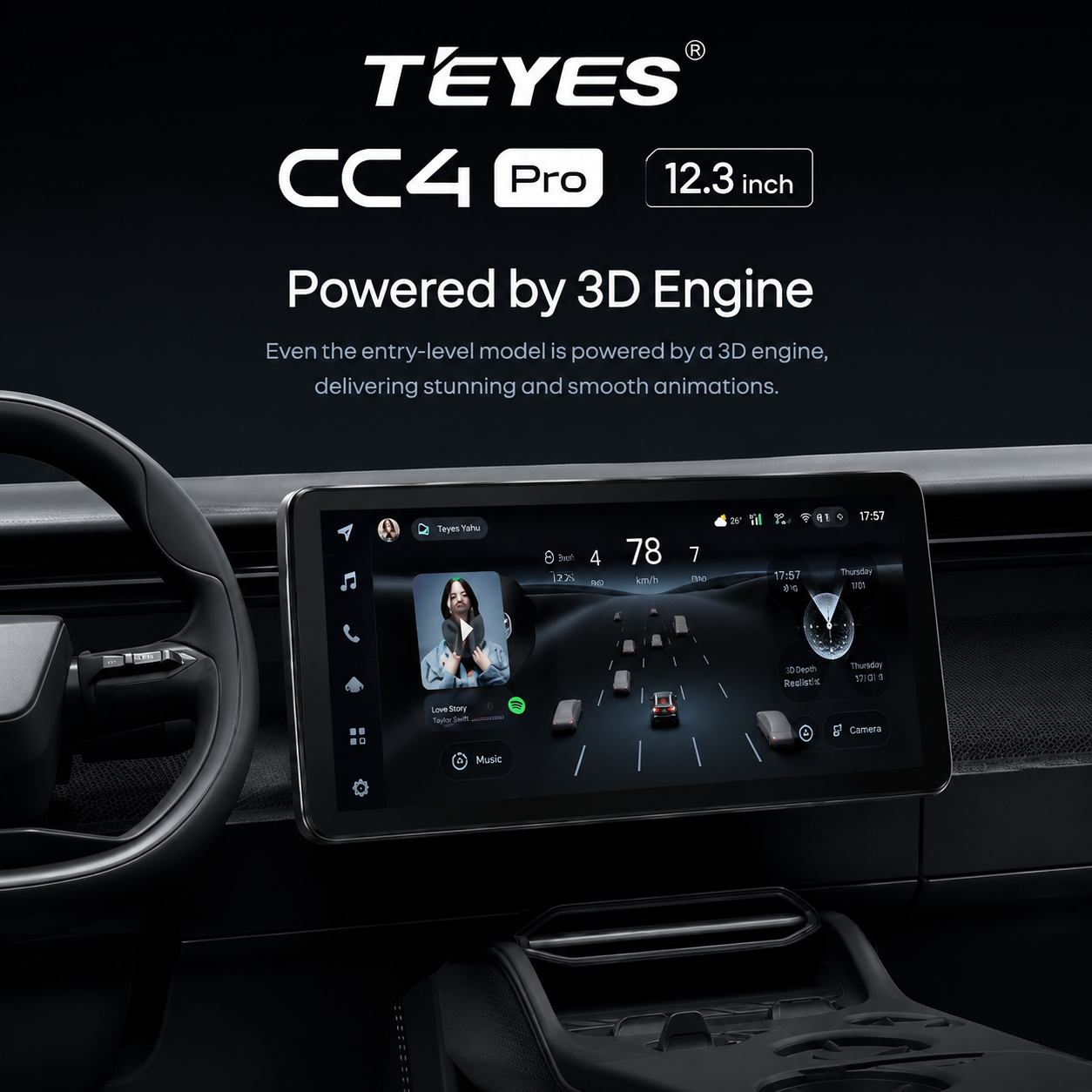

🖥️ Display

• Resolution: 1920 × 720
• Screen Sizes: 12.3″
• Touch Haptic:
  • Supported (12.3″)

🔊 Audio System

• Amplifier: TAS6424 Digital Amplifier
• Subwoofer Voltage: 4V – 8V
• Sound Delay: Supported
• Sound Effects: DTS Supported
• Active Three-Way: Supported
• Channels: 7.1 Channel
• Digital Output: Optical + Coaxial
• USB Audio: 16–32bit / 44.1–384kHz

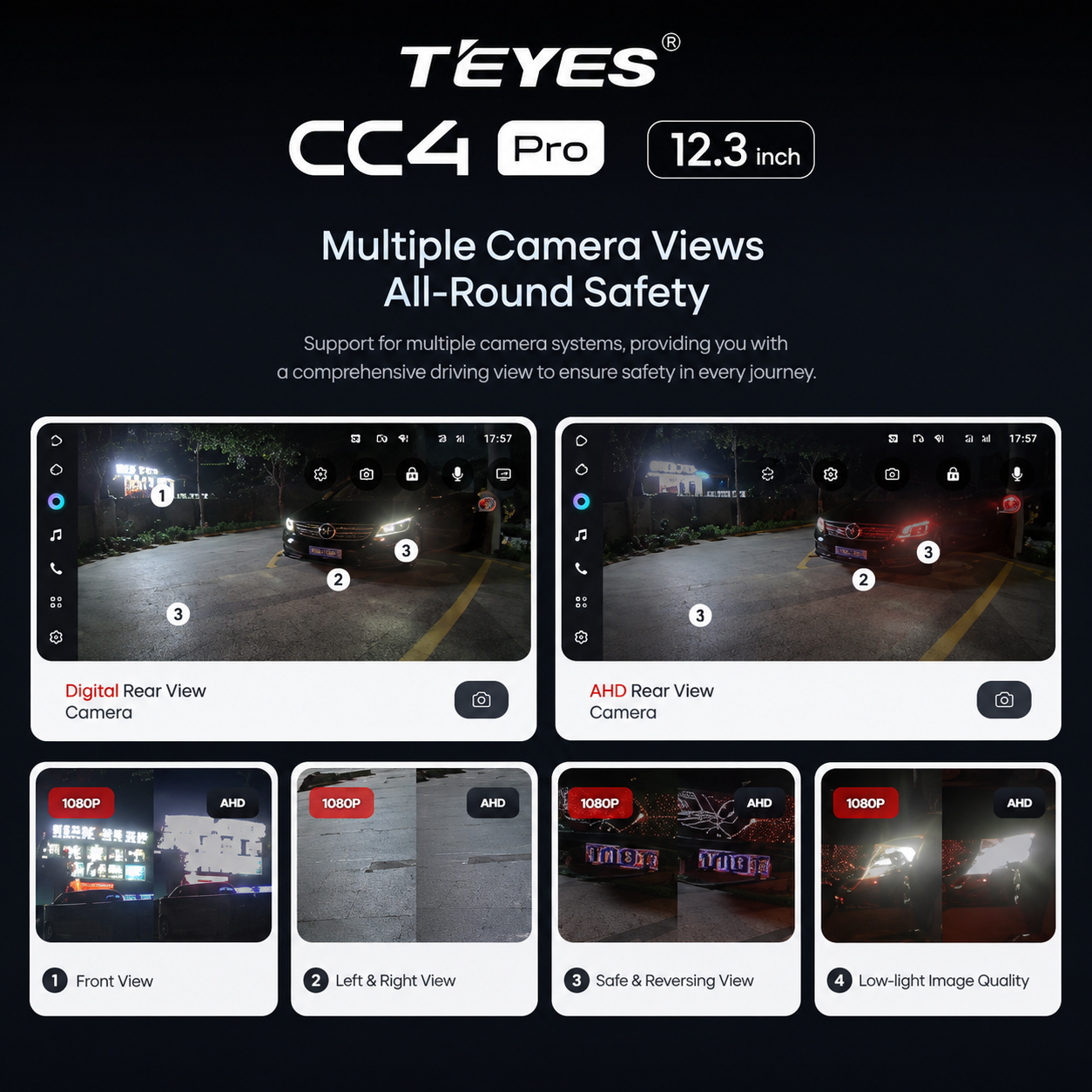

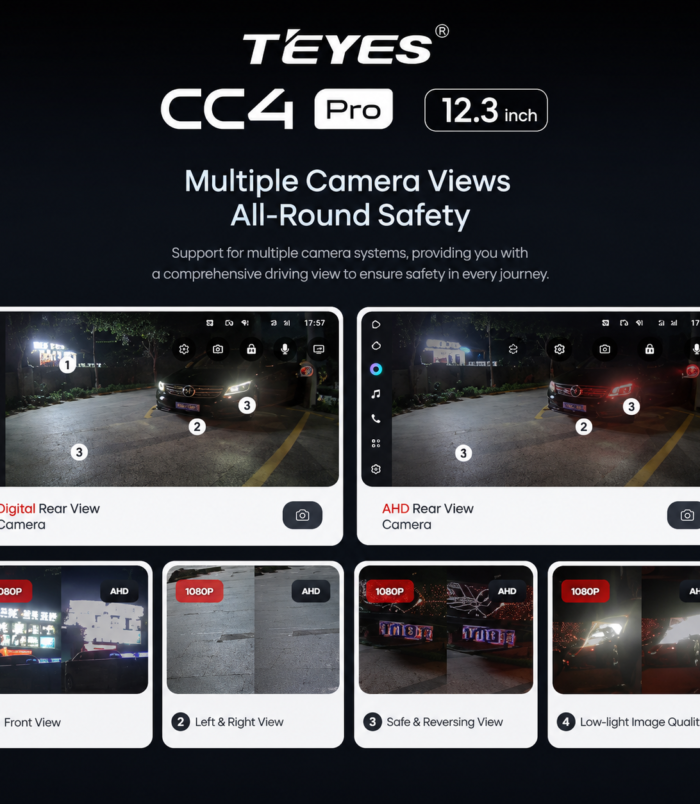

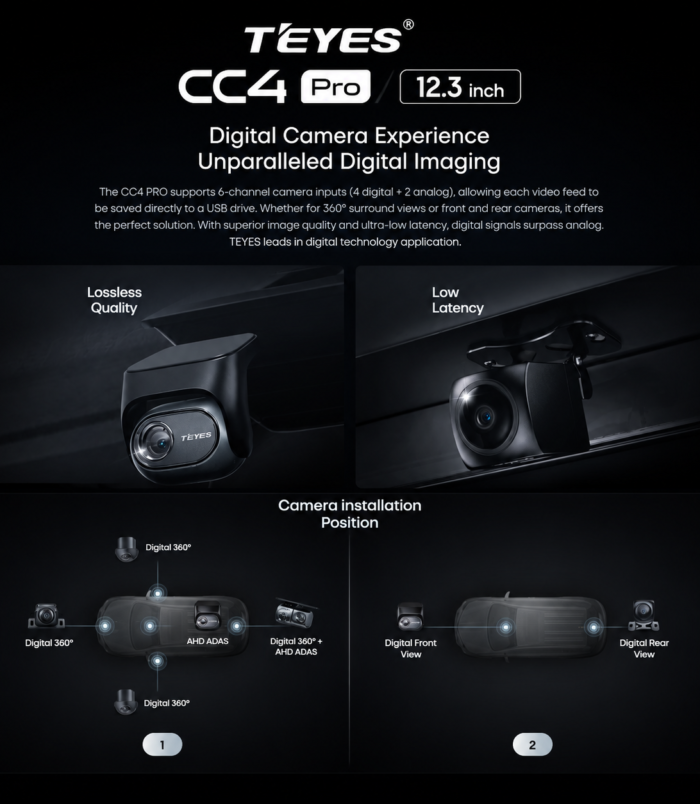

📷 Camera System

• Recording: Head Unit Recording or AHD Separate DVR
• Signal:
  • Digital: LVDS
  • Analog: AHD / CVBS
• Resolution: 1920×1080 (Lossless, Zero Latency)
• Video Channels:
  Supports up to 6 cameras
  (4 digital + 2 analog)
• 360° SVM: Supported
• Sentry Mode (Parking Monitor): Supported
• Remote Monitoring: Supported

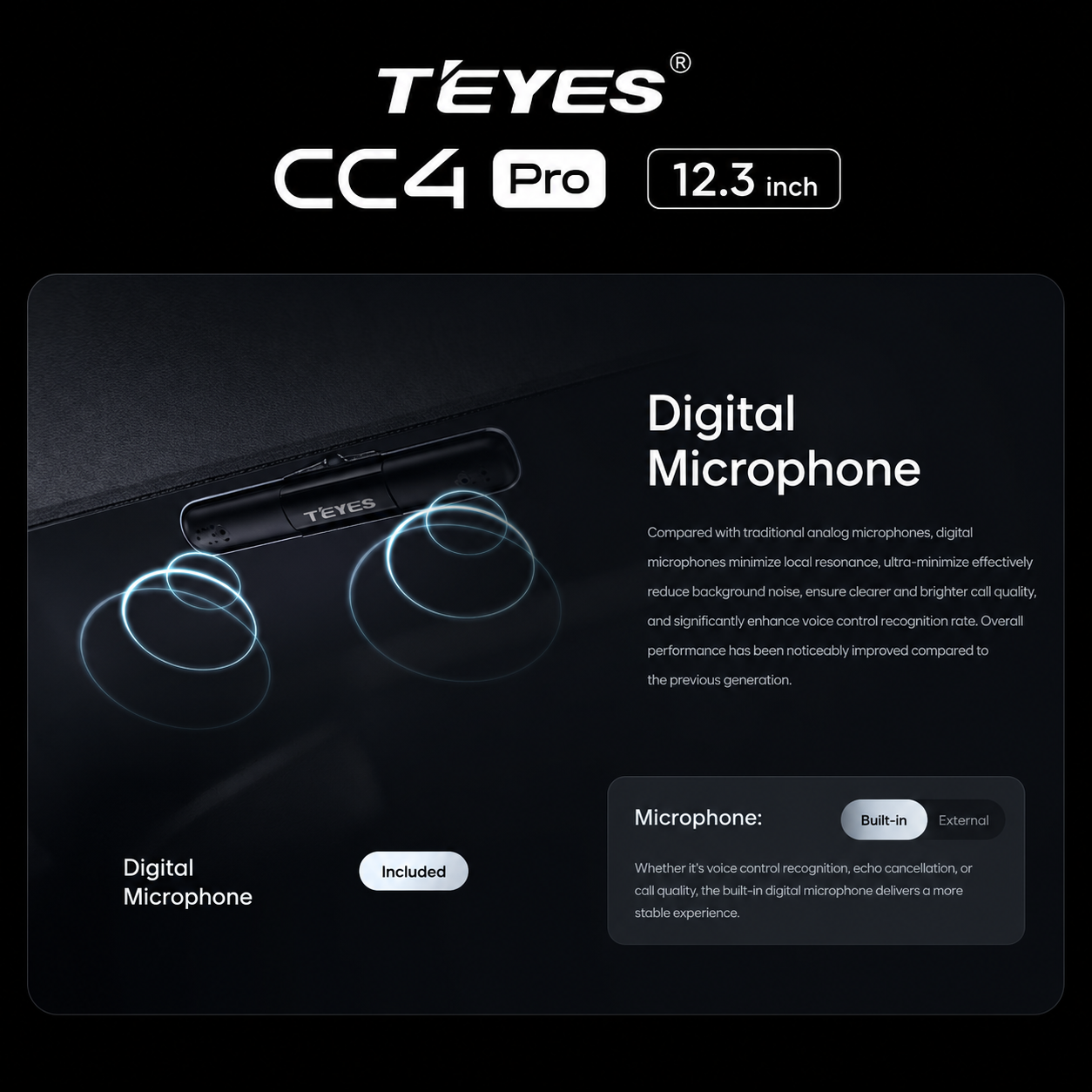

🎤 Microphone

• Structure: External + Internal
• Signal Type: Digital

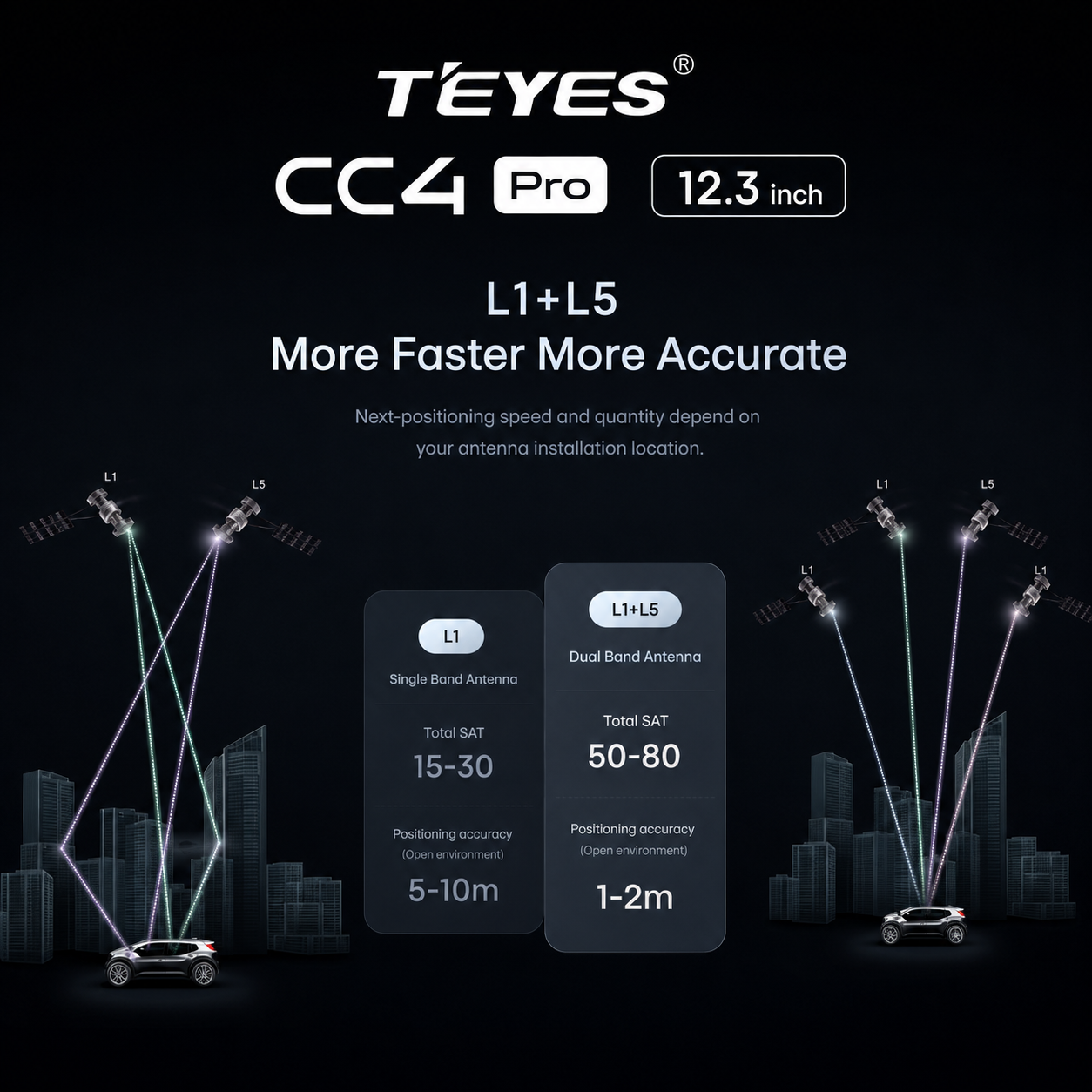

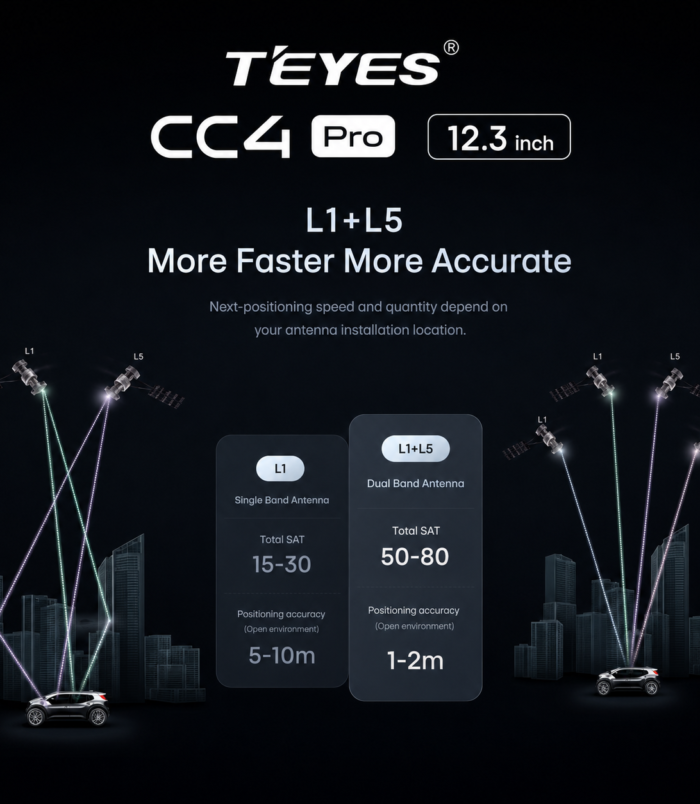

🛰️ Satellite (GPS)

• Frequency Band: Dual-Band L1 + L5
• Systems: GPS, GLONASS, NavIC, BeiDou, Galileo, QZSS, SBAS
• Satellites:
  • Visible: ~100
  • Usable: ~80

📡 WLAN (WiFi)

• WiFi Standard: WiFi 6 / 6E
• Bands: 2.4 / 5 / 6 GHz
• Protocols: 802.11 a/b/g/n/ac/ax
• Features: DBS, 2×2 MU-MIMO

📶 4G Connectivity

• LTE-FDD:
  B1/2/3/4/5/7/8/12/17/18/19/20/26/28/32
• LTE-TDD:
  B34/38/39/40/41/42
• WCDMA:
  B1/2/4/5/6/8/19
• GSM:
  850/900/1800/1900 MHz
• Antennas:
  2 Antennas (Main + Diversity)

⚙️ Other Features

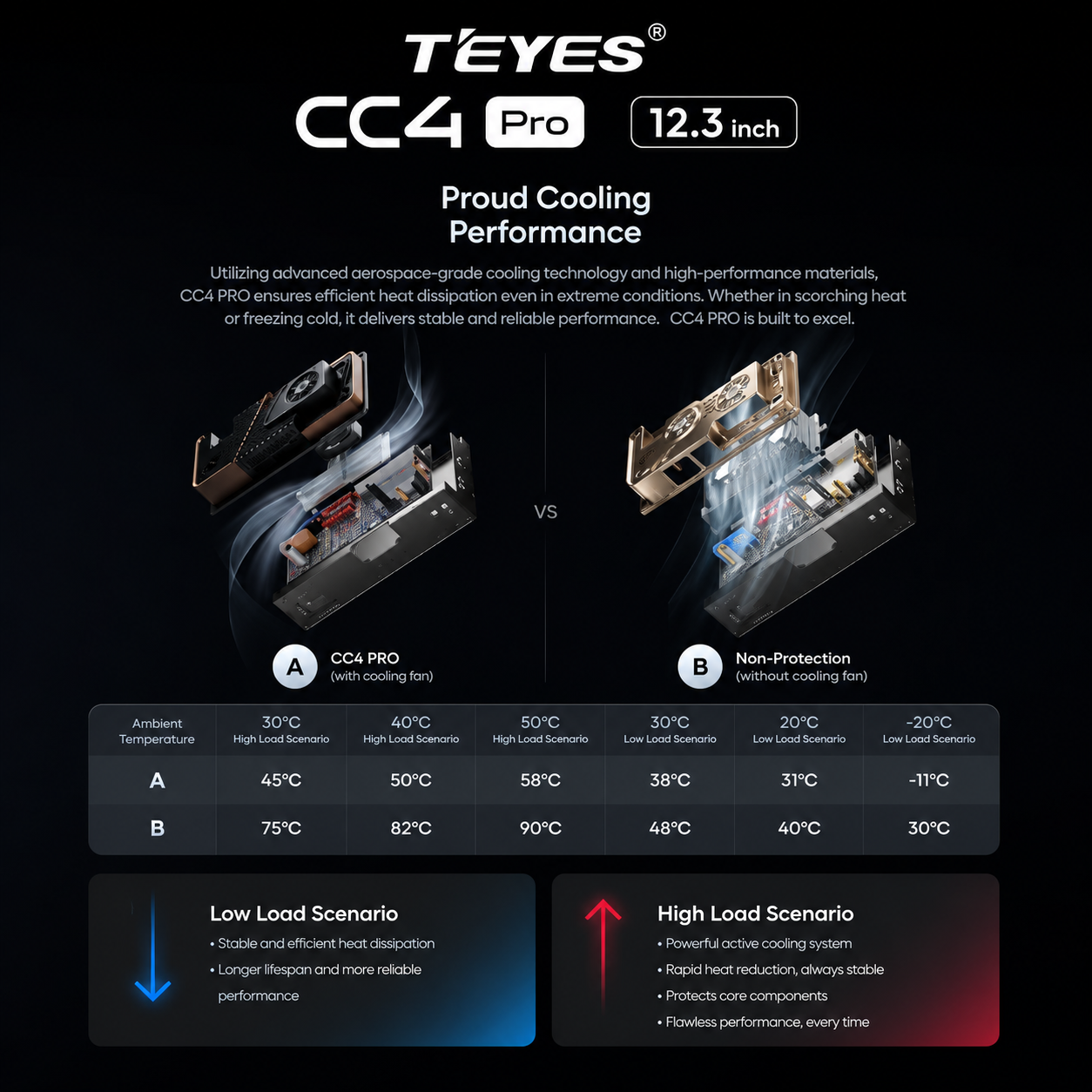

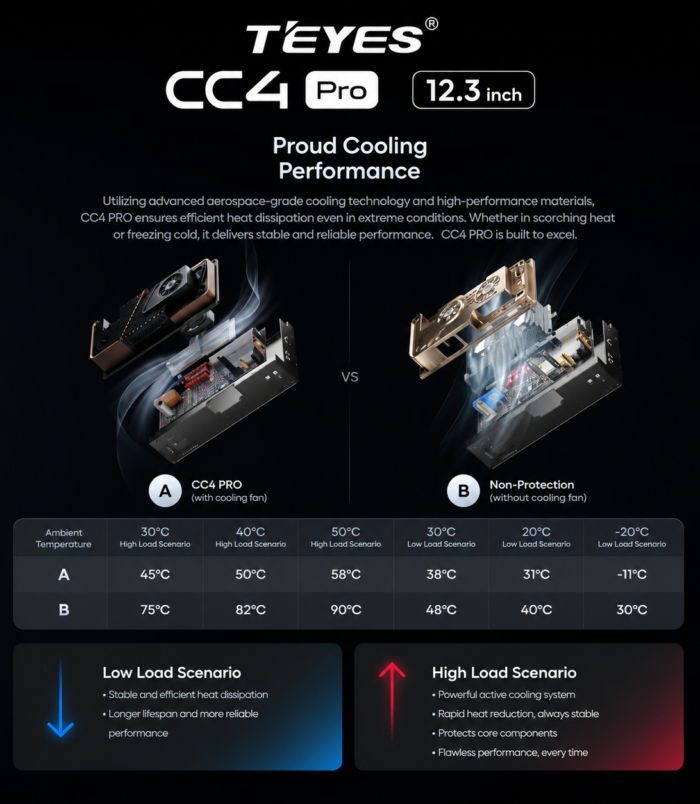

• Operating Temperature: -30°C to +70°C
• Bluetooth: 5.2
• Bluetooth Protocols:
  HFP / A2DP / AVRCP / PBAP / MAP / ANCS
• Audio Codecs:
  SBC / AAC / APTX / APTX HD / LDAC
• Gyroscope: 6-Axis
• Standby Current: ≤6mA
• Radio Chip: SI47925 (RDS)
• USB Ports: 3× USB 2.0
• Video Output:
  DP 4K @ 60fps (requires TEYES adapter)

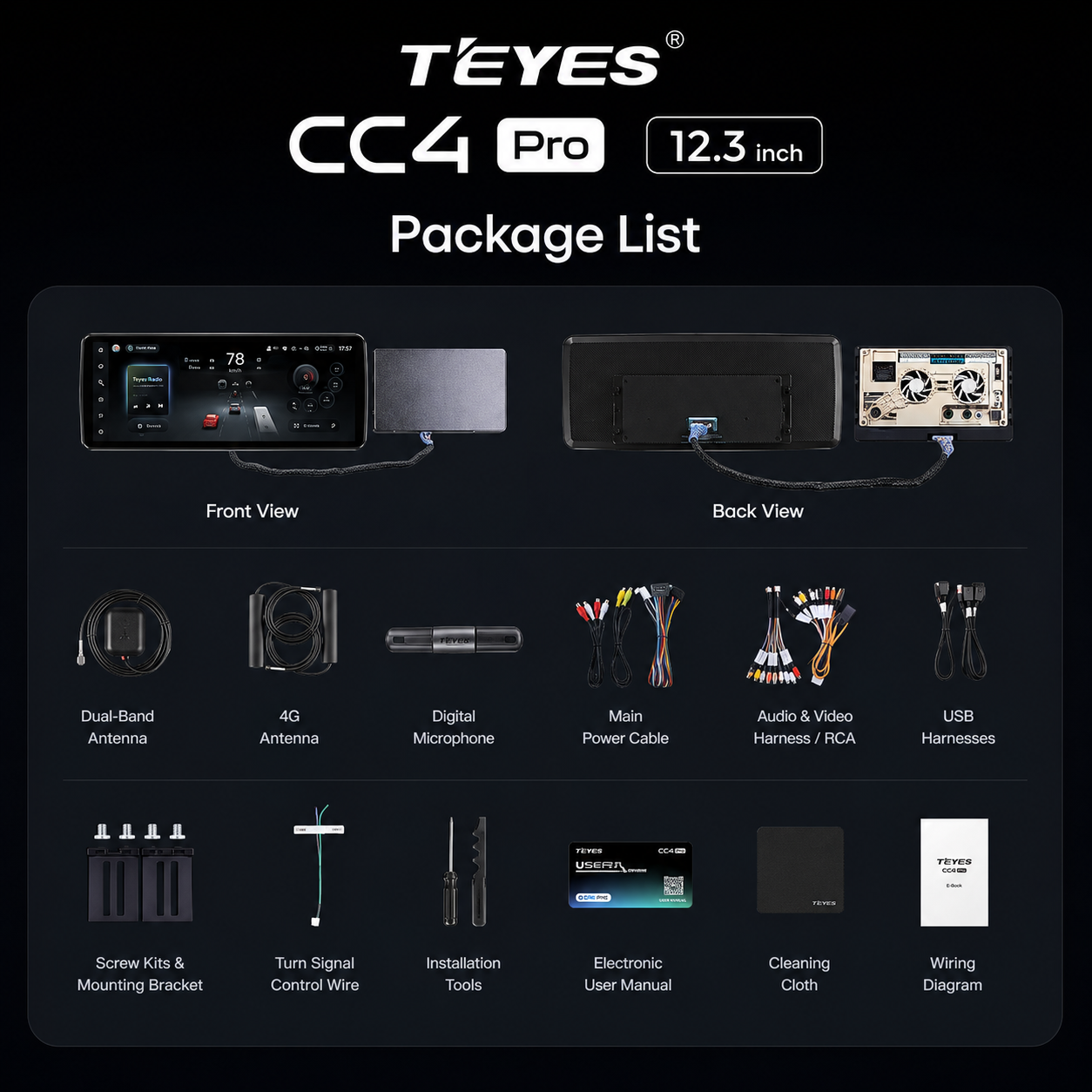

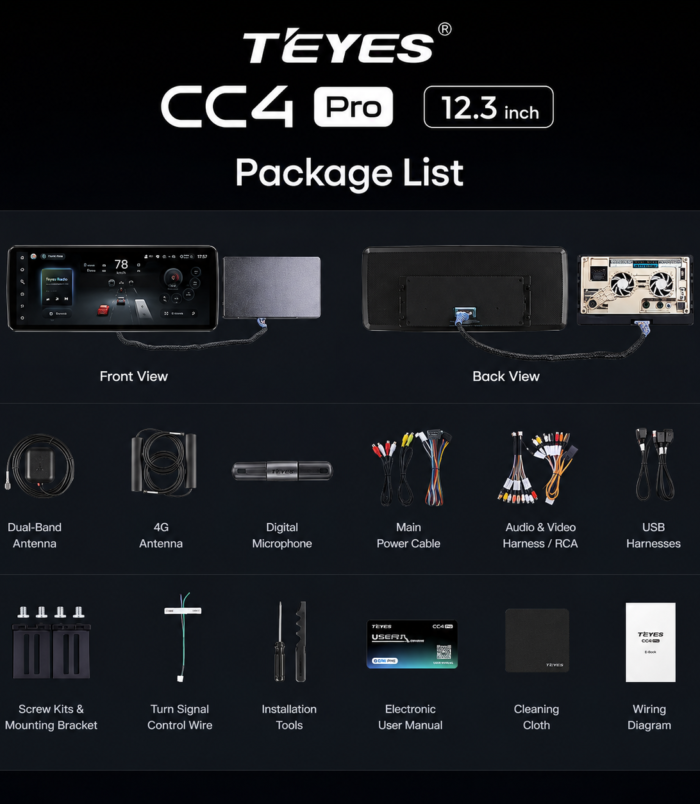

🔌 Supported Accessories

• Front & Rear Digital Cameras
• AHD DVR Box
• 360° Digital Surround View Cameras
• Digital Microphone
• TPMS
• Front & Rear Parking Sensors
• OBD
• DP to HDMI

📱 Smart Features

• Apple CarPlay & Android Auto: Supported
• YouTube Playback: 4K @ 60fps

⭐ Summary

The TEYES CC4 Pro is a true flagship head unit combining:

• Snapdragon-level performance
• Ultra-fast storage
• Professional 7.1 DSP audio
• Advanced camera ecosystem
• Next-gen connectivity (WiFi 6 + Dual GPS)

👉 Built for premium users who want the best in-car technology available.
