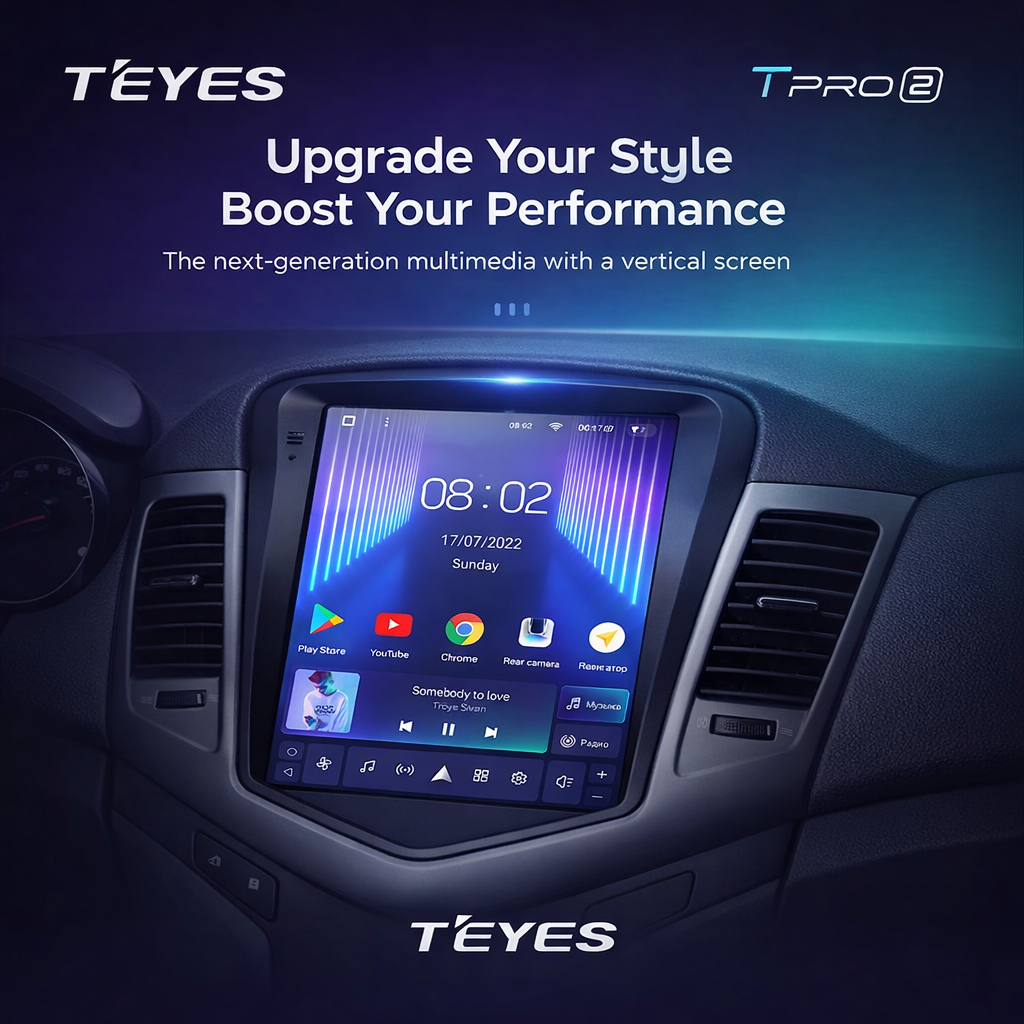

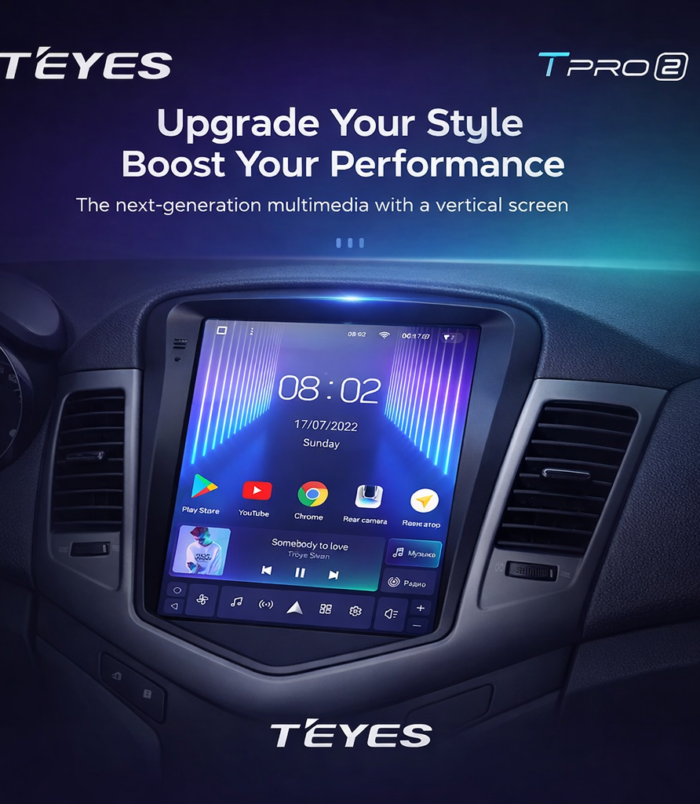

TEYES TPRO 2 , 9.7″ Tesla style screen

🚀 TPRO 2 – Parameter Configuration
📌 System Version

Model: TPRO 2

⚙️ Processor

🧠 Octa-Core 1.8GHz 64-bit
🔹 Unisoc UMS512 (12nm)
🔹 2× Cortex-A75 + 6× Cortex-A55

💾 Memory Options

🔹 3GB RAM + 32GB ROM
🔹 4GB RAM + 64GB ROM

📌 Note: Actual available storage may be slightly lower due to system files.

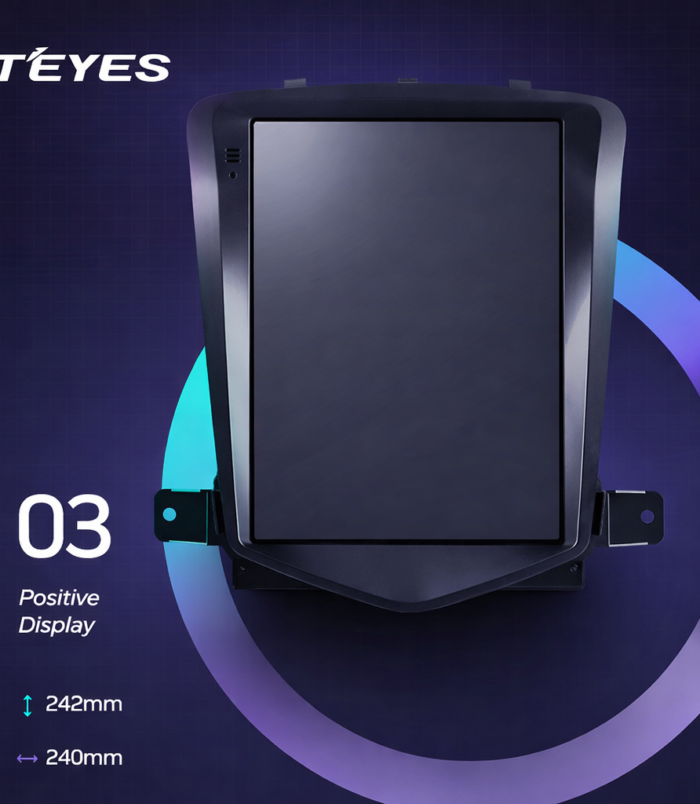

🖥 Display

✨ QLED 2.5D Hardened Glass Display

📐 Resolution: 1024 × 768

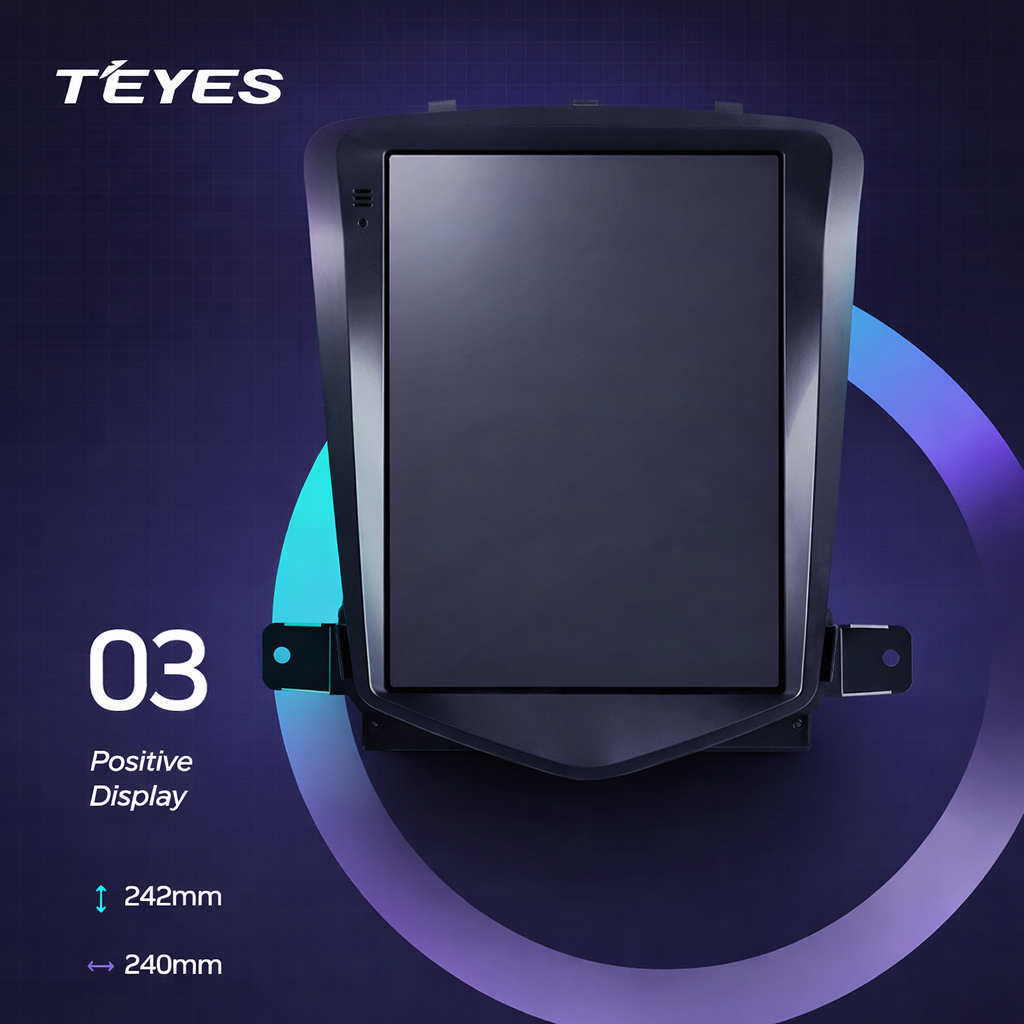

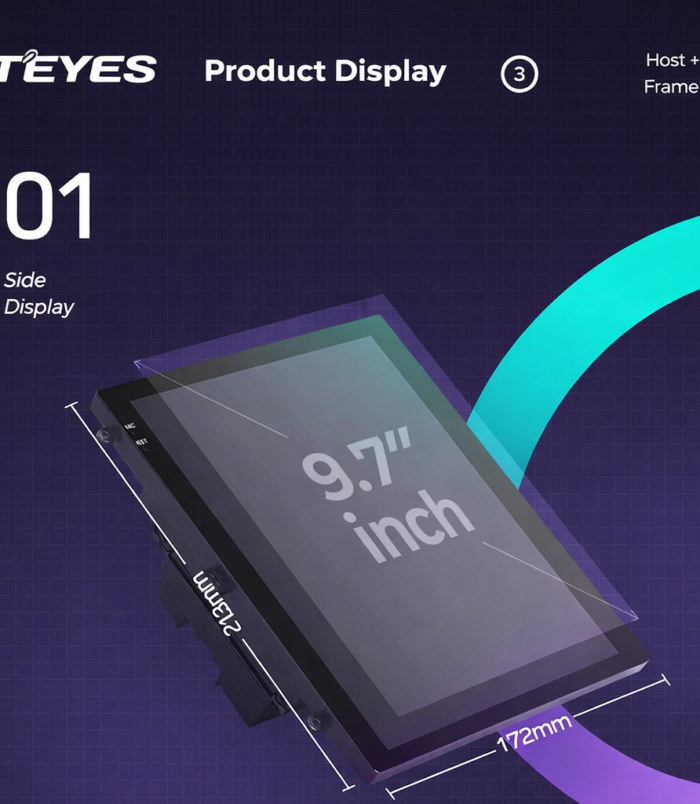

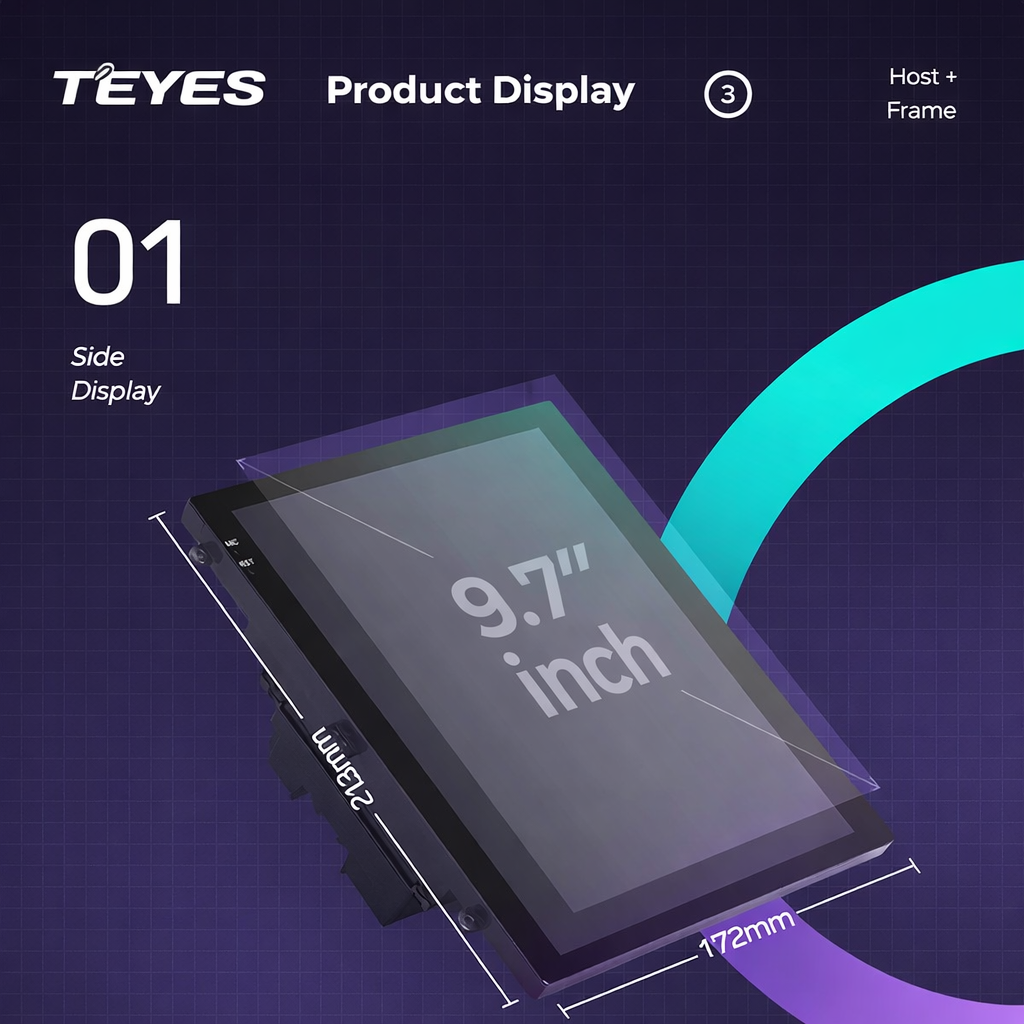

📏 Screen Size: 9.7 Inches

🎵 Audio System

🔊 DSP Chip: ROHM32107
🎚 Amplifier: TDA7851 or TDA7838

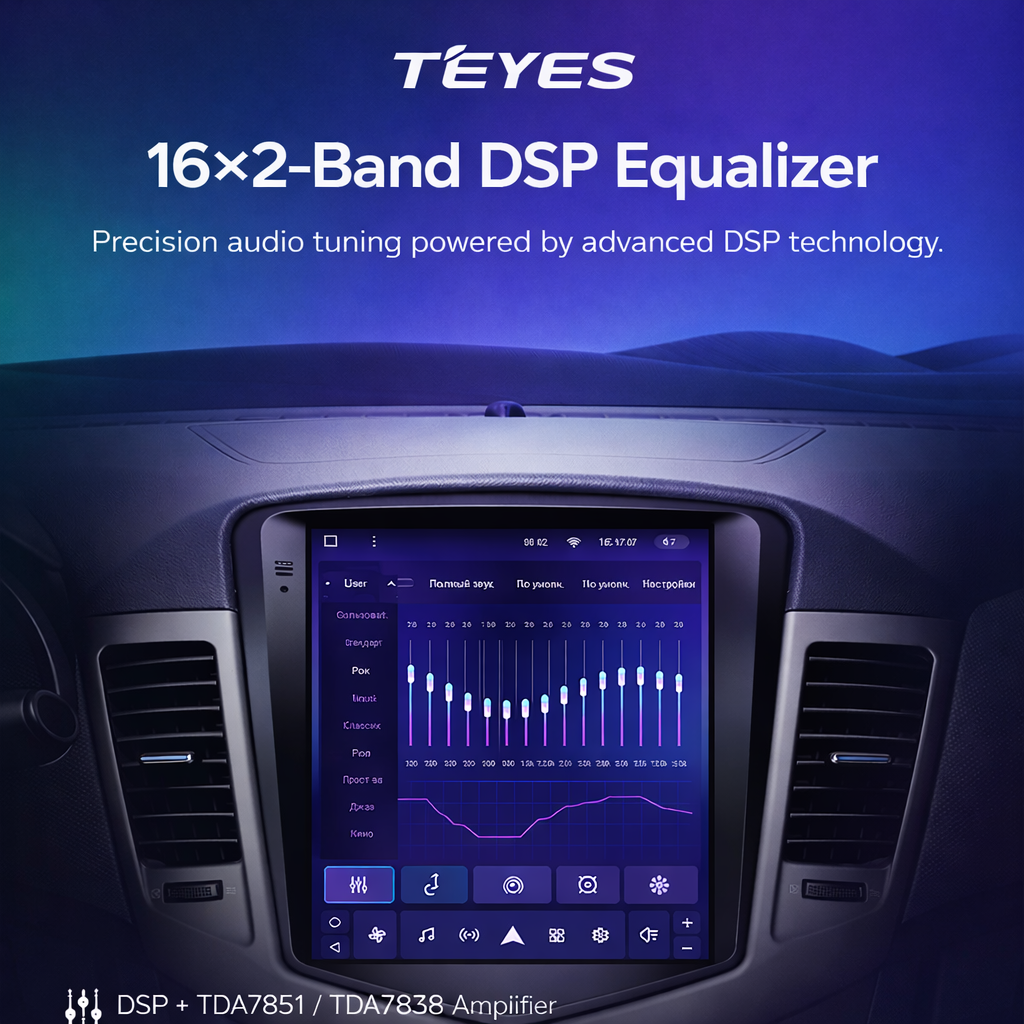

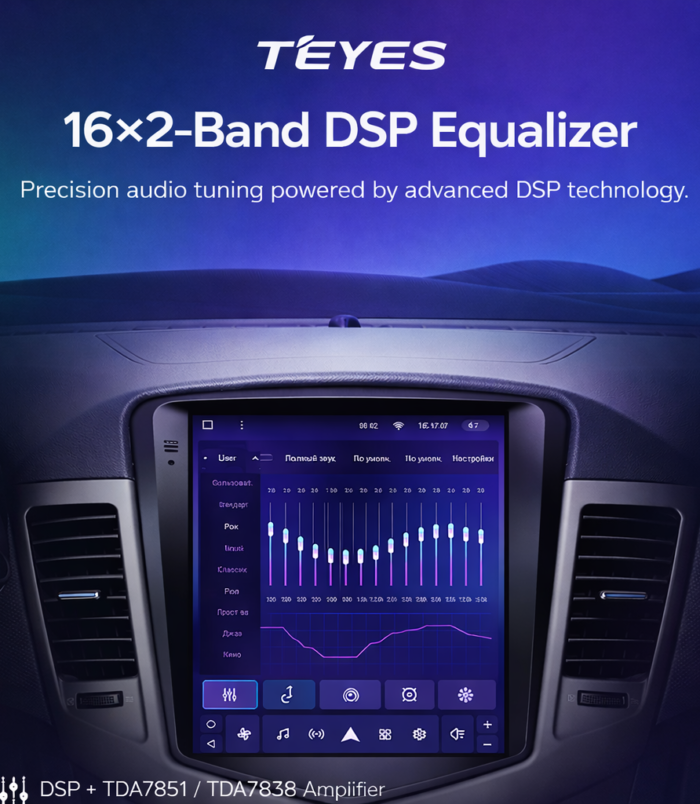

🎛 Equalizer: 16 × 2 Bands
🔥 Bass Enhancement: Supported

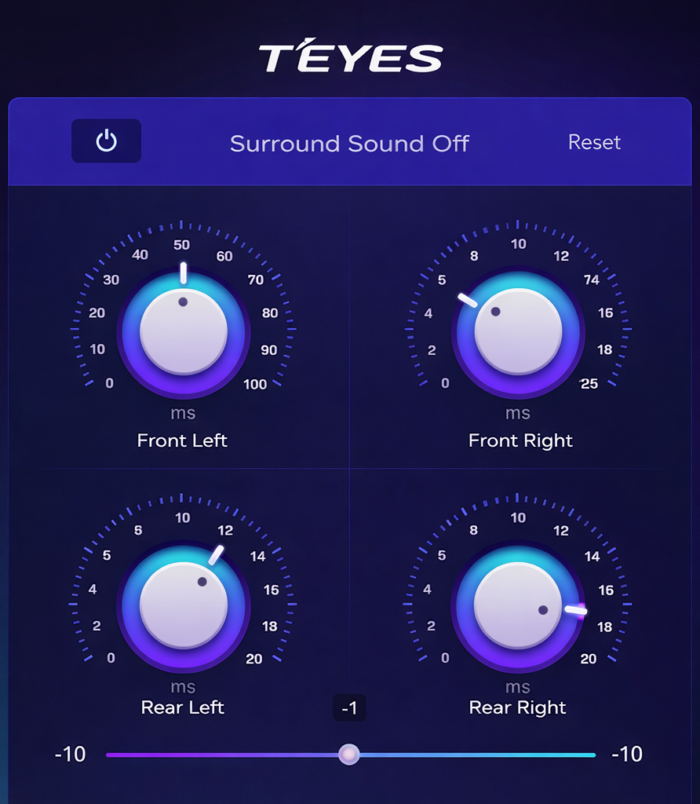

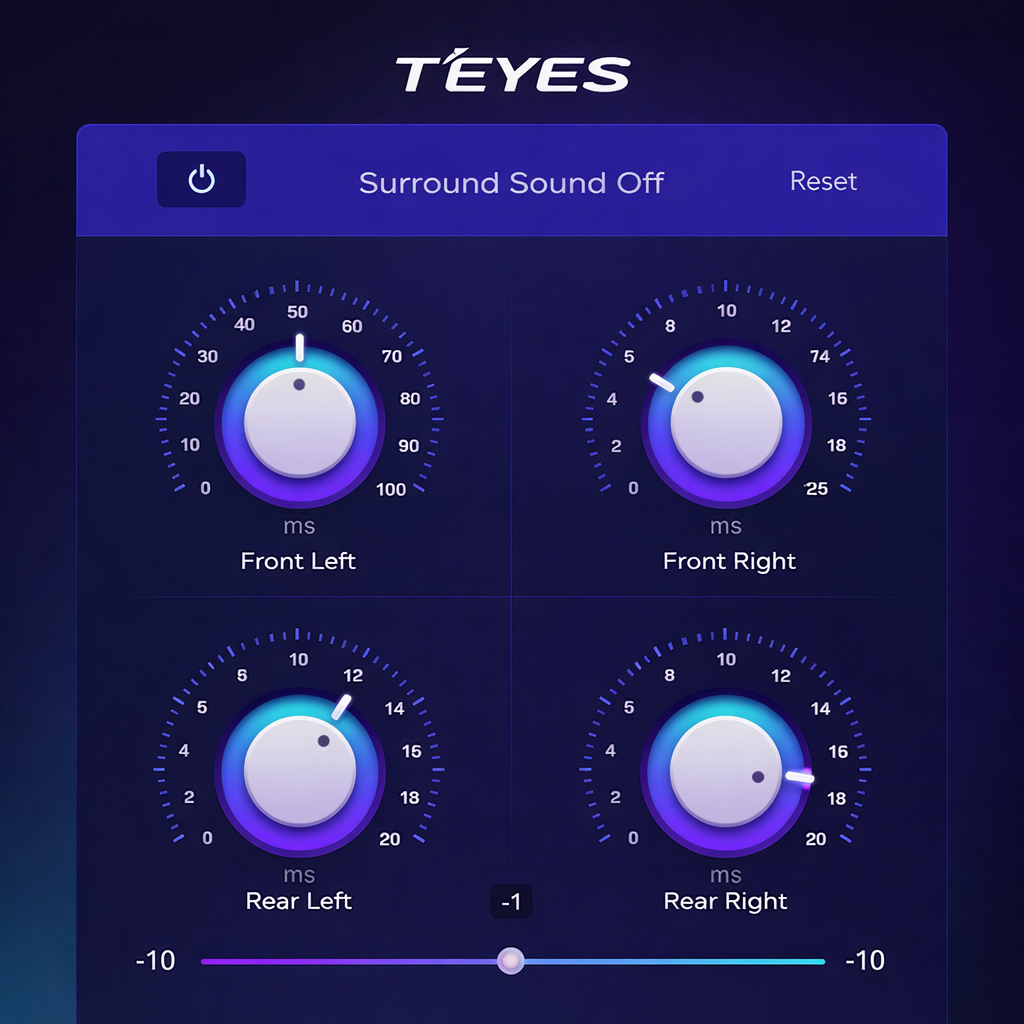

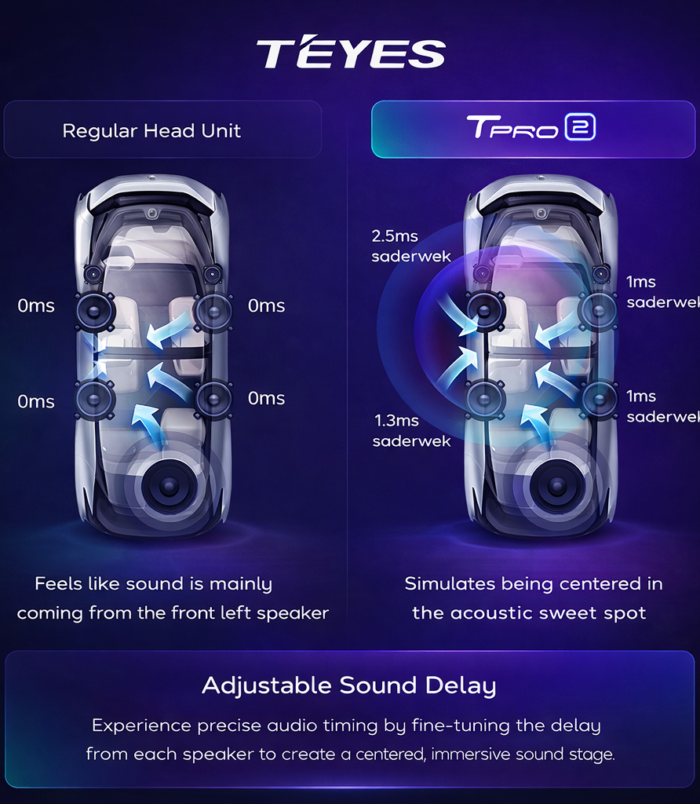

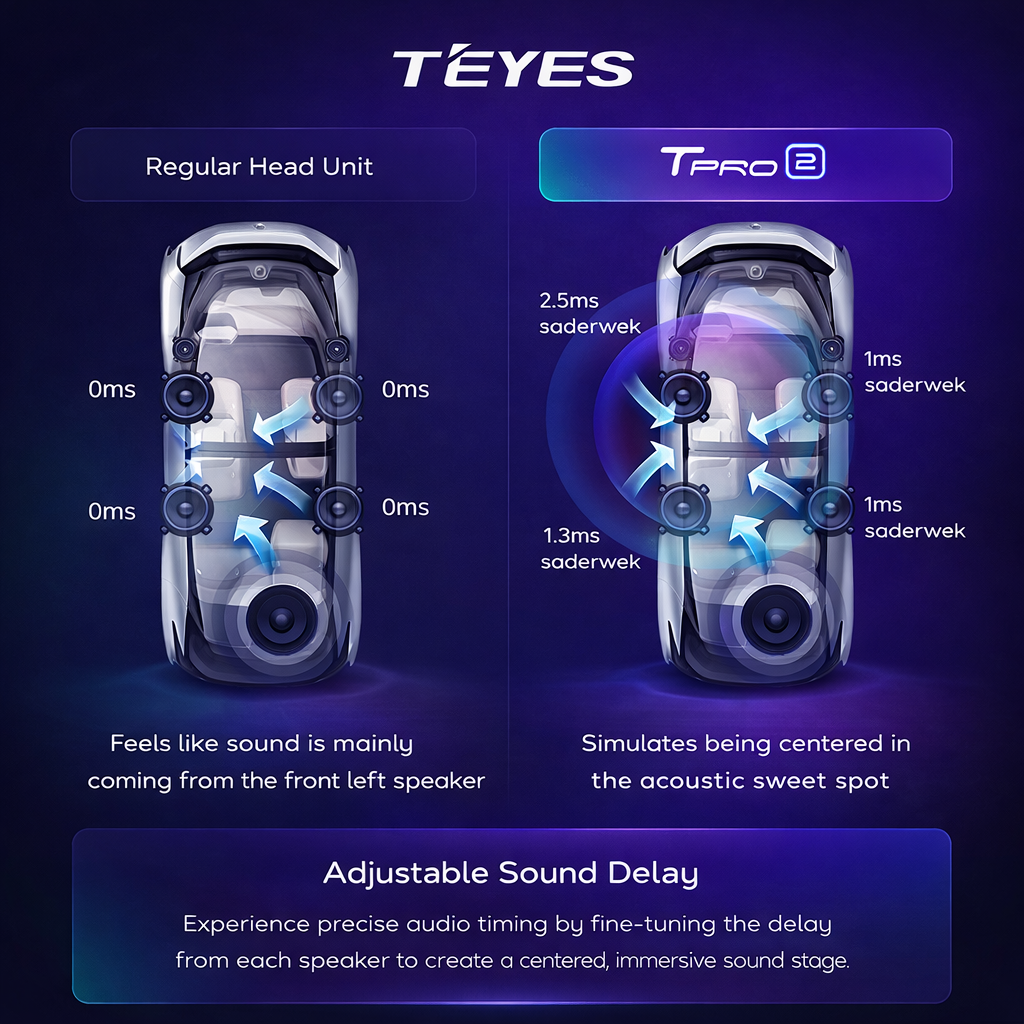

⏱ Time Delay Adjustment: Supported
🔈 Subwoofer Output: Supported

🌐 Connectivity

📡 Internet: 4G + WiFi
🔵 Bluetooth: Realtek 8761

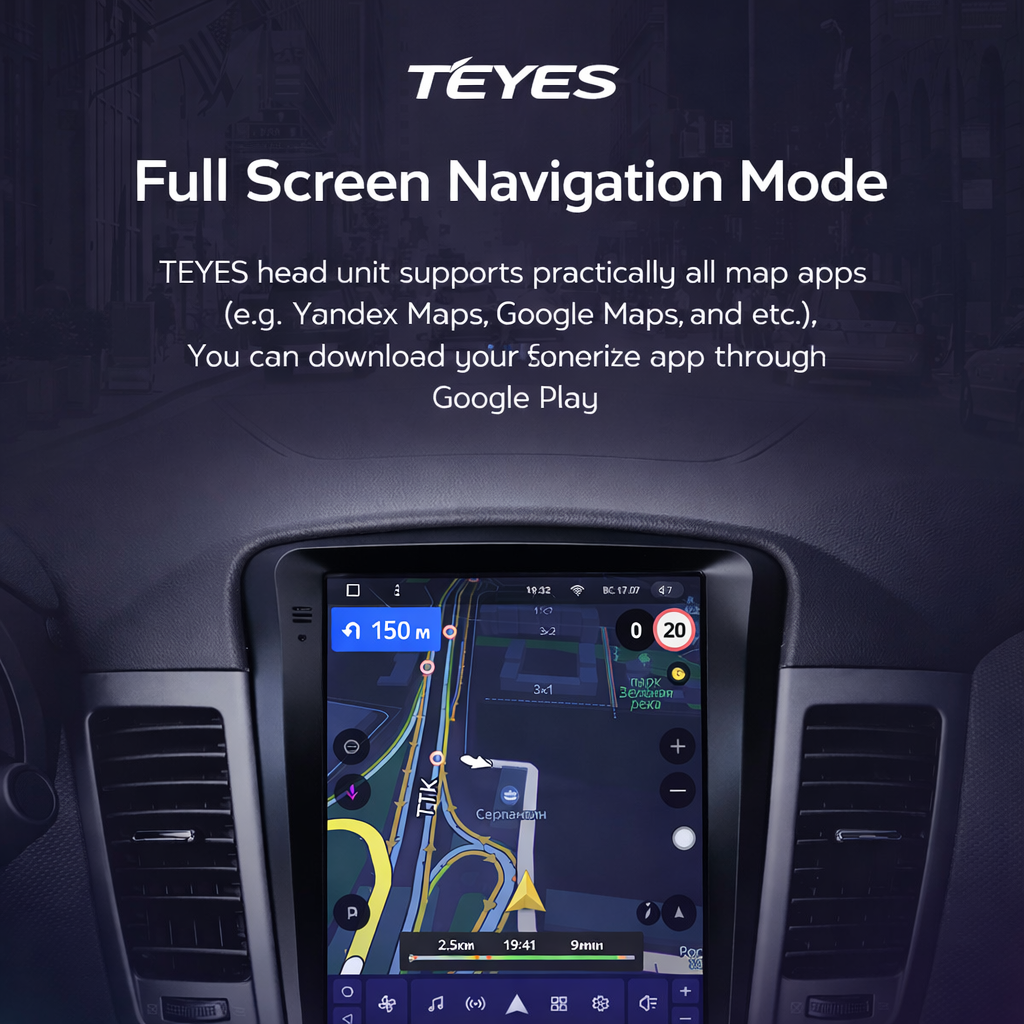

🧭 Navigation: GPS + BeiDou + GLONASS
📱 OS: Android 10.0 (API Level 29)

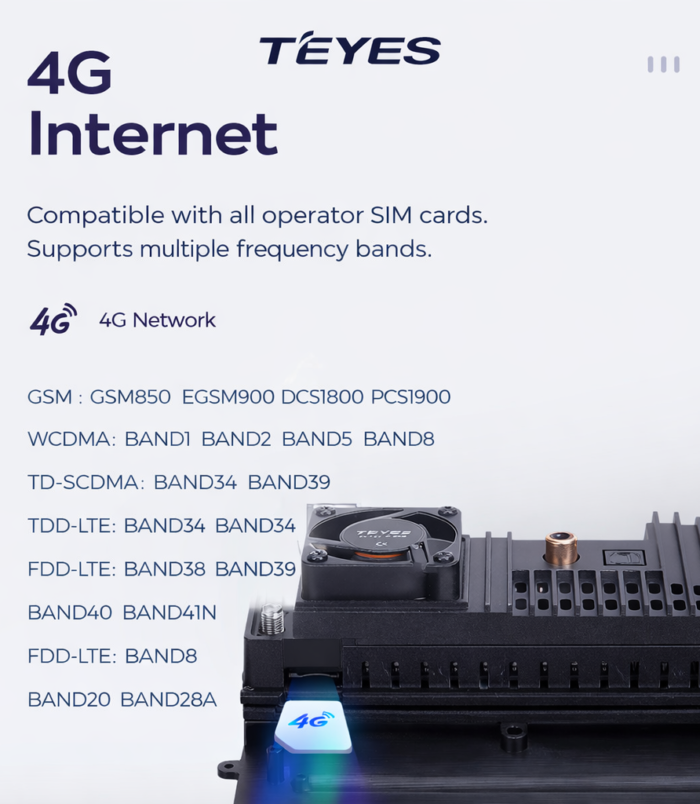

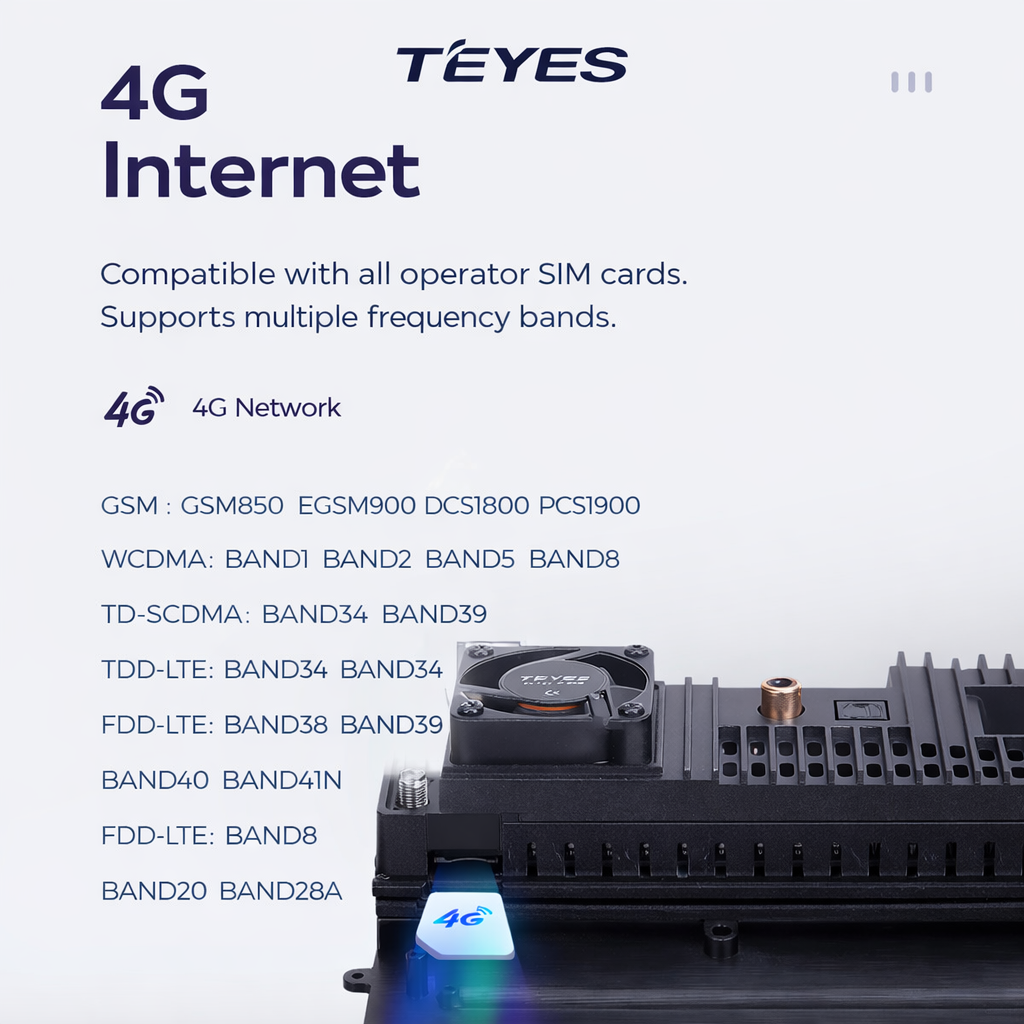

📶 4G Frequency Band Support

📡 GSM: GSM850 / EGSM900 / DCS1800 / PCS1900
📡 WCDMA: Band 1 / Band 2 / Band 5 / Band 8
📡 TD-SCDMA: Band 34 / Band 39
📡 TDD-LTE: Band 34 / Band 38 / Band 39 / Band 40 / Band 41
📡 FDD-LTE: Band 1 / Band 2 / Band 3 / Band 5 / Band 7 / Band 8 / Band 20 / Band 28A

🔋 Power Management

⚡ Standby Power Consumption: ≤ 8 mA

🛑 After 3 days of vehicle inactivity, the TEYES unit automatically shuts down completely to protect your car battery.

🎥 Camera & Multimedia

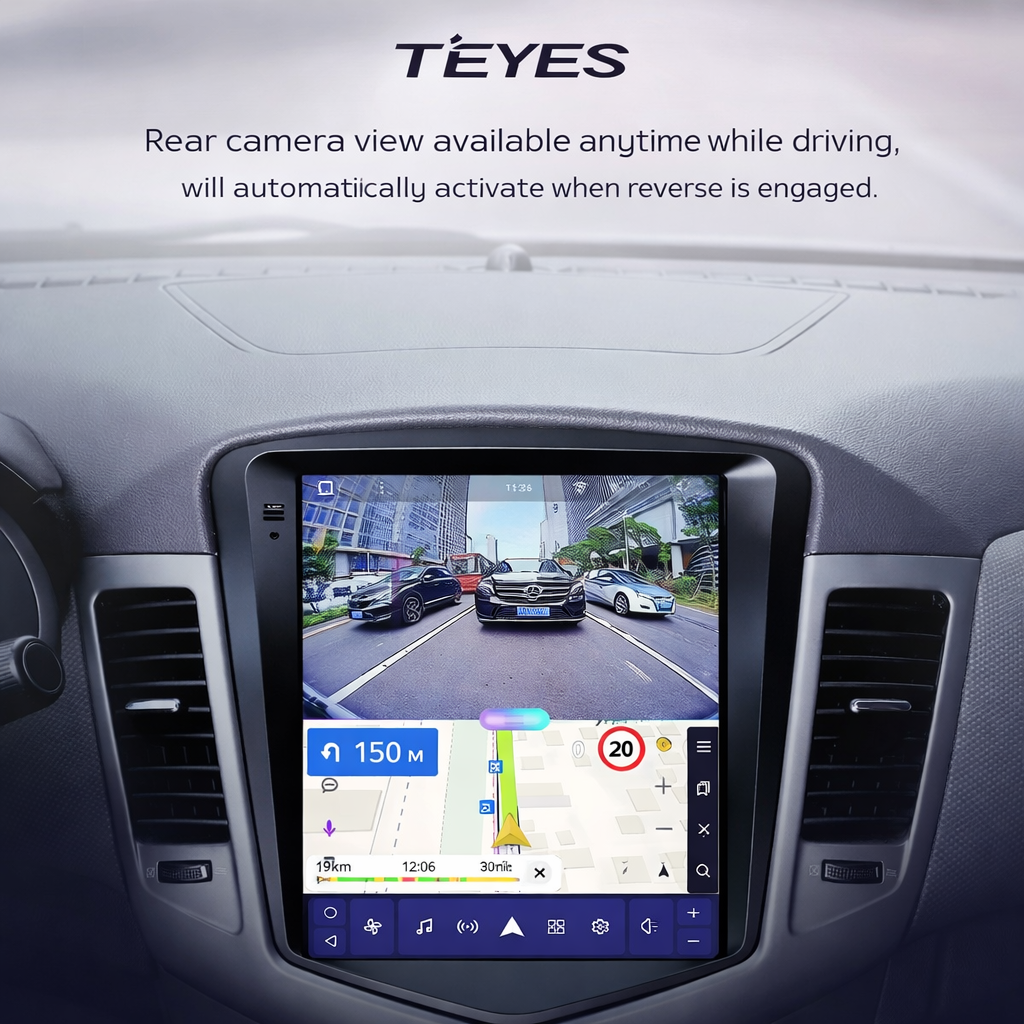

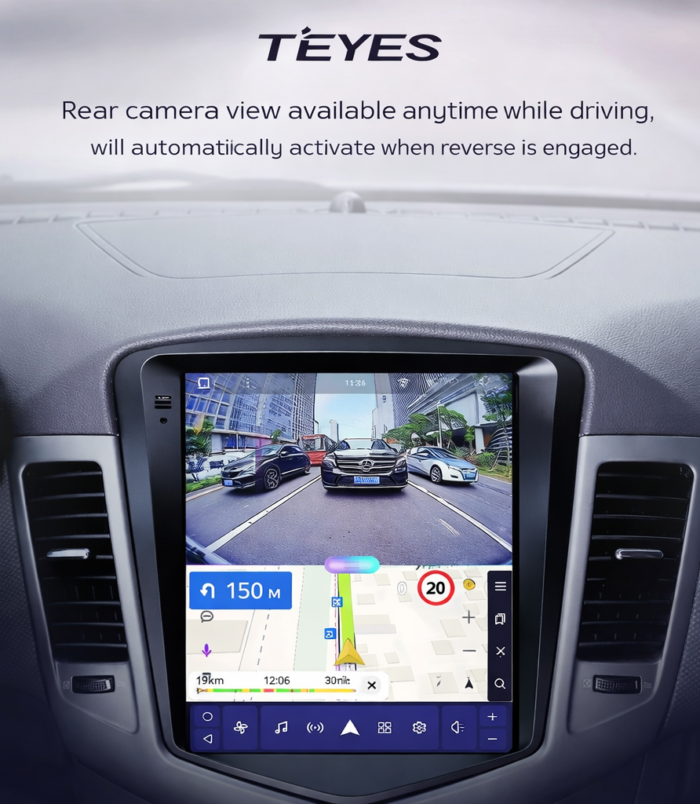

📷 Rear Camera Support: AHD 1920×1080 Full HD
🔌 3 × USB 2.0 Ports
📻 Radio Chip: TDA7708 (Enhanced Reception)

🧩 Supported Accessories

🎥 USB DVR
🚗 TPMS System
🔧 OBD Diagnostic Adapter

⭐ TPRO 2 Overview

Premium sound quality.
Powerful hardware performance.
Smooth Android-based experience.

TPRO 2 combines advanced automotive multimedia technology with the simplicity of a smartphone.
