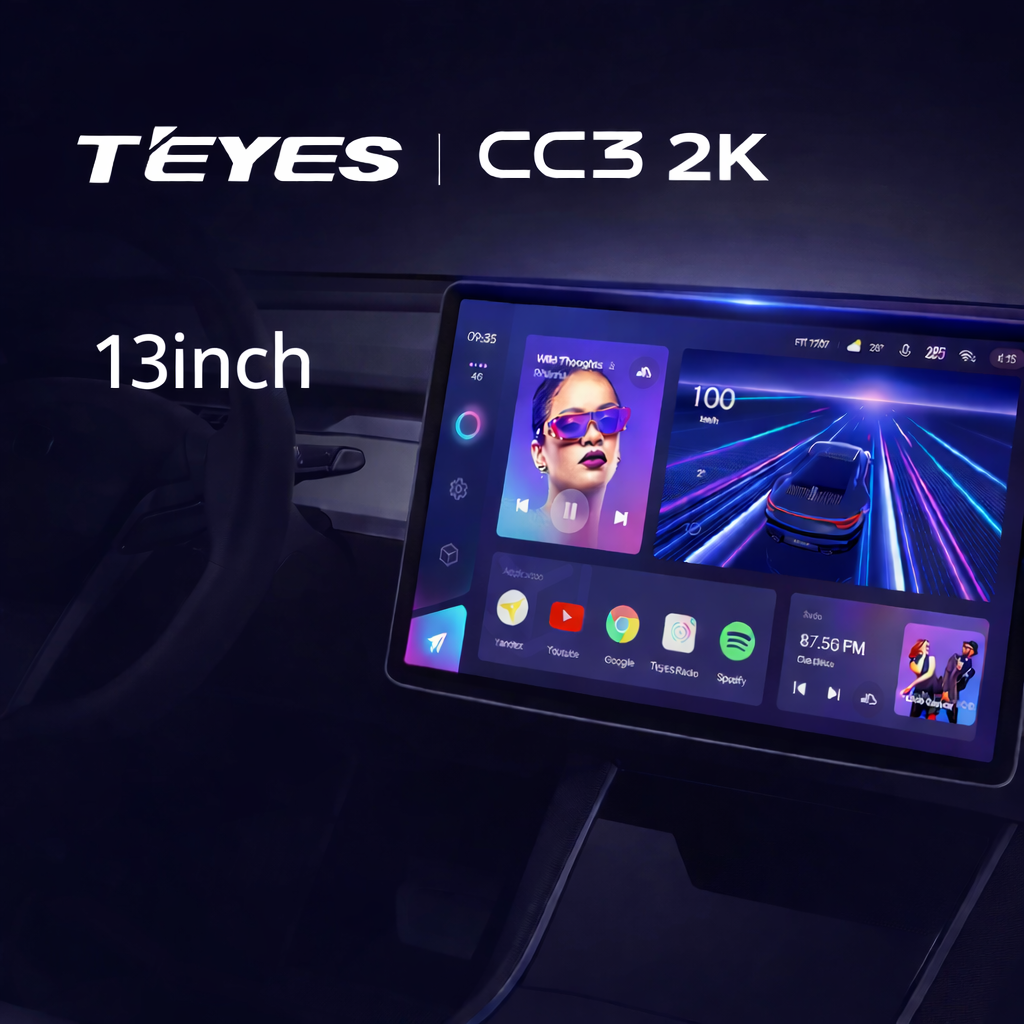

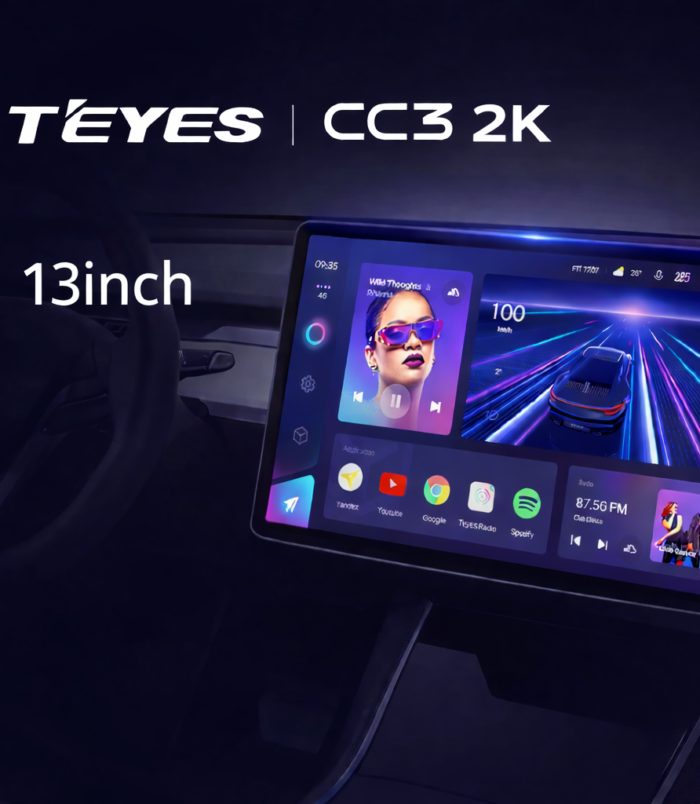

TEYES CC3-2K 13-inch

Version
CC3 2K 13inch
Processor
8 Cores 2.0G 64-bit
2× Cortex A75 + 6× Cortex A55
ARM 12NM
Memory
4GB RAM + 32GB ROM
4GB RAM + 64GB ROM
6GB RAM + 128GB ROM
Resolution
2000 × 1200
Due to system files, the actual available ROM capacity may be slightly less than the stated capacity.
Display
Integrated Quantum In-Cell Display
Screen and touch panel bonded together
Quantum Dot QLED Display
Screen Size
13 inch
DSP
ROHM32107
ADAU1701
Internet
4G + 2.4G WiFi
5G WiFi
Navigation
GPS + Beidou + GLONASS
Operating System
Android 10
API Level 29
4G Frequency Bands Supported
GSM: GSM850, EGSM900, DCS1800, PCS1900
WCDMA: BAND1, BAND2, BAND5, BAND8
TD-SCDMA: BAND34, BAND39
TDD-LTE: BAND34, BAND38, BAND39, BAND40, BAND41N
FDD-LTE: BAND1, BAND2, BAND3, BAND5, BAND7, BAND8
E: BAND20, BAND28A
Power Consumption (Standby) ≤ 7 mA
After the vehicle is turned off and not used for 3 days, TEYES automatically disconnects power and enters
a full shutdown mode, ensuring the car battery will not be drained.
Audio Amplifier Chip
TDA7851
Equalizer
27-Band Equalizer

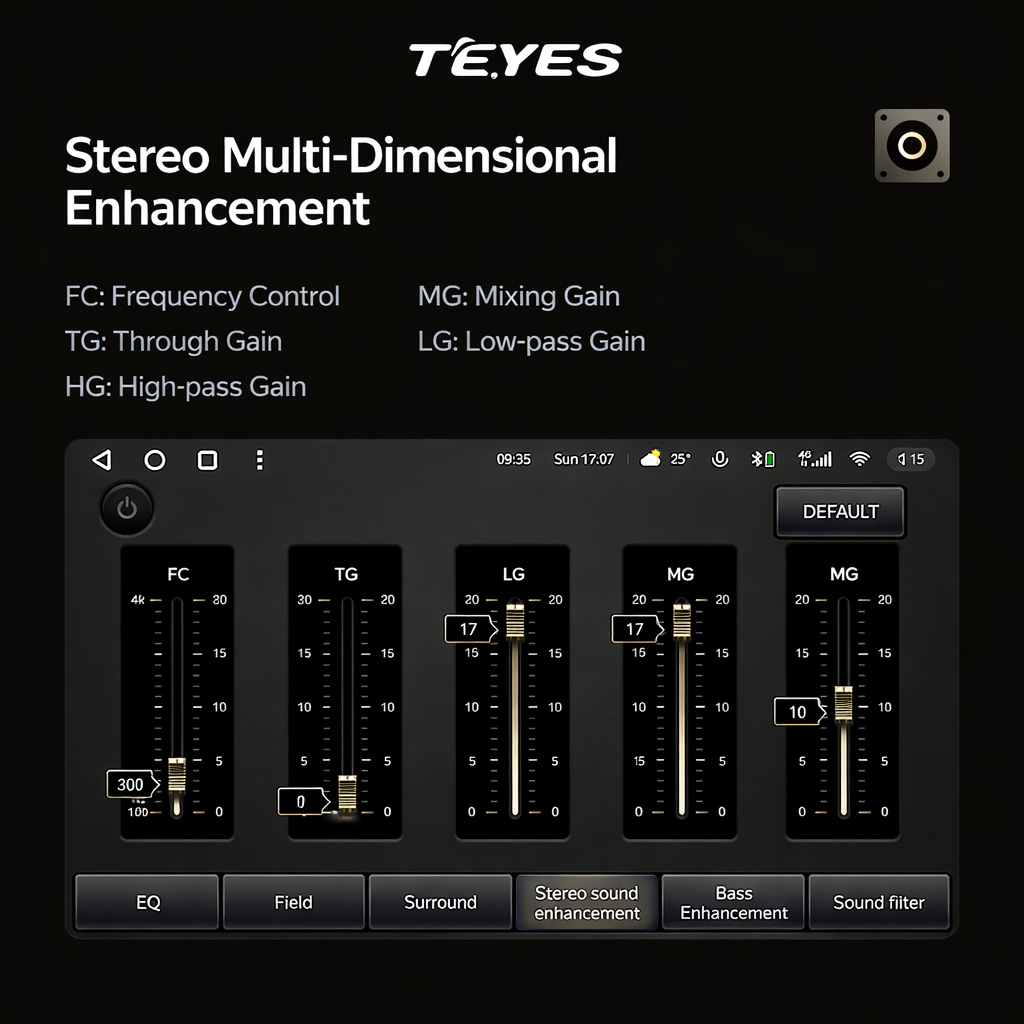

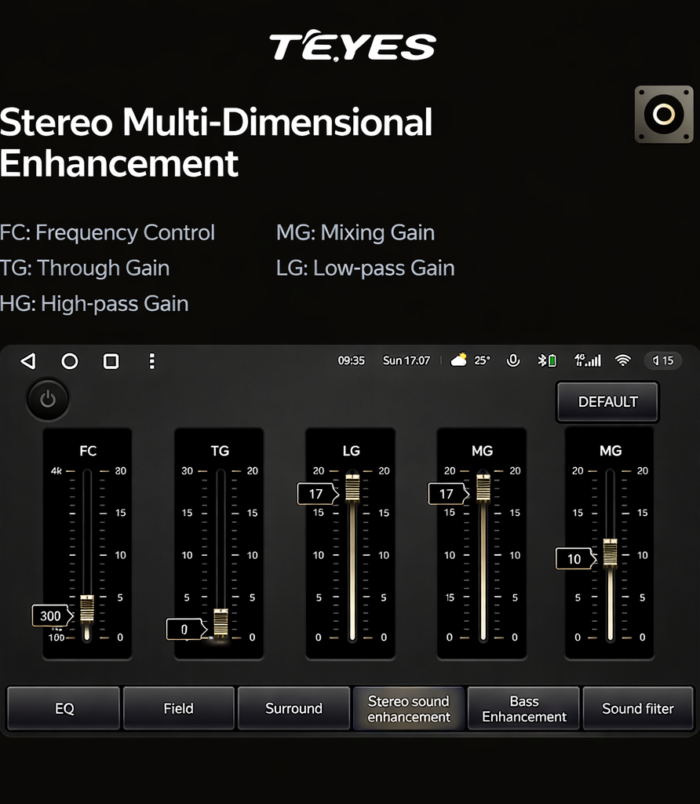

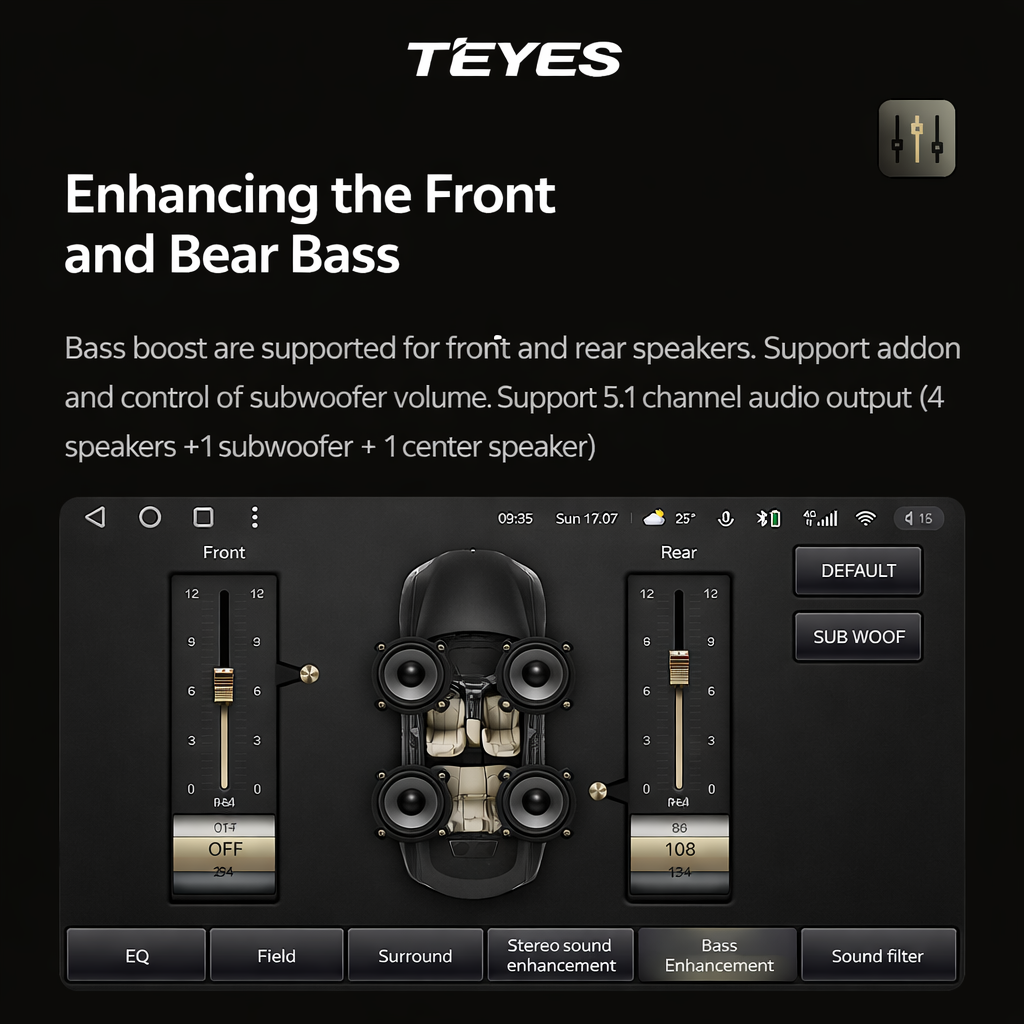

Bass Enhancement / Time Delay / Sound Filter
Available

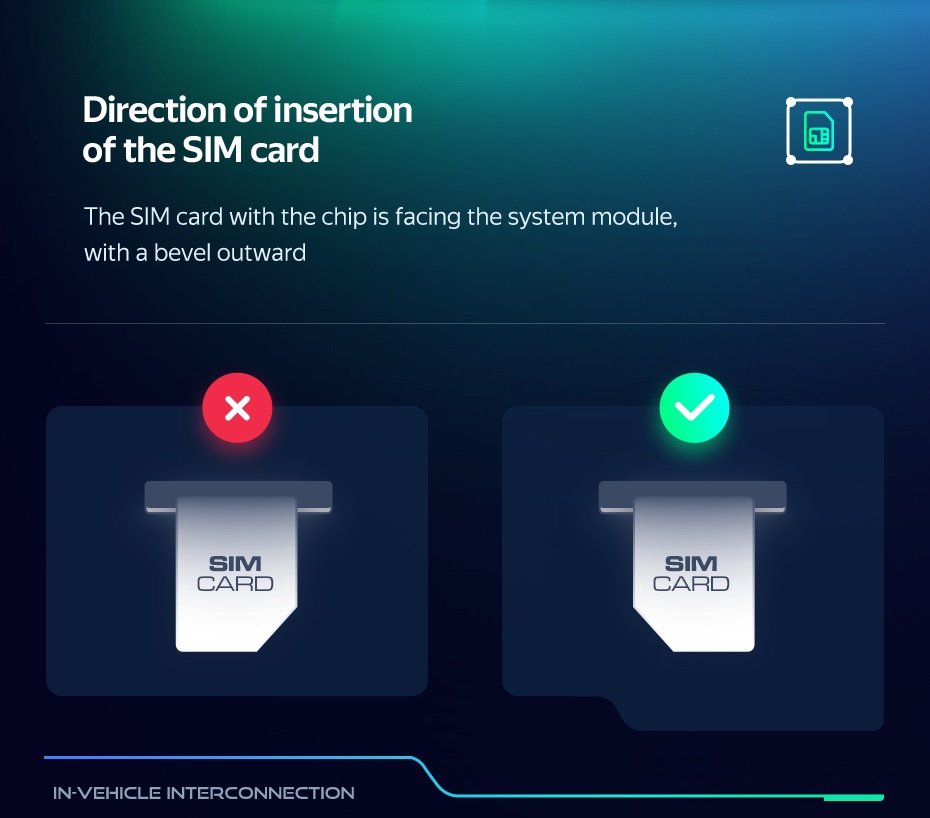

External Microphone & External SIM Card
Supported

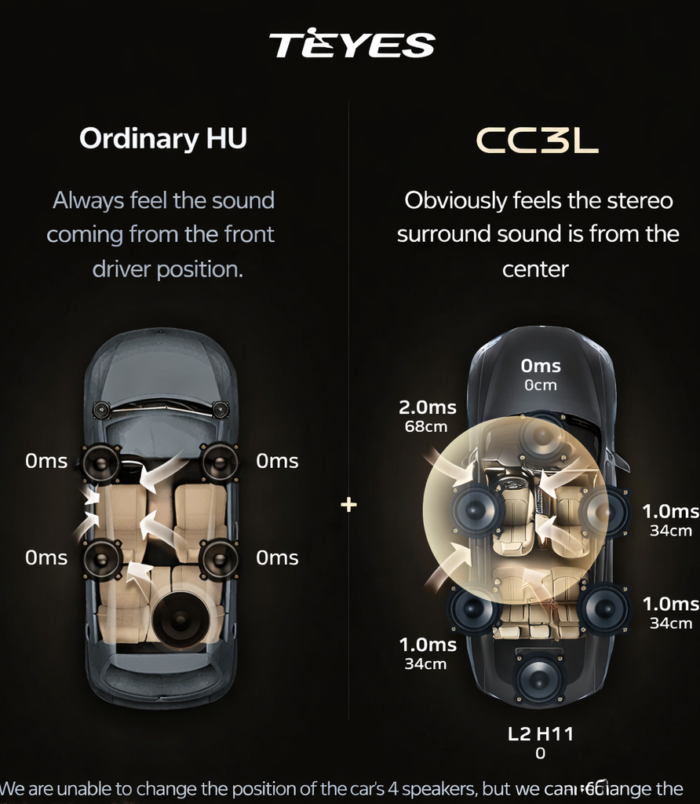

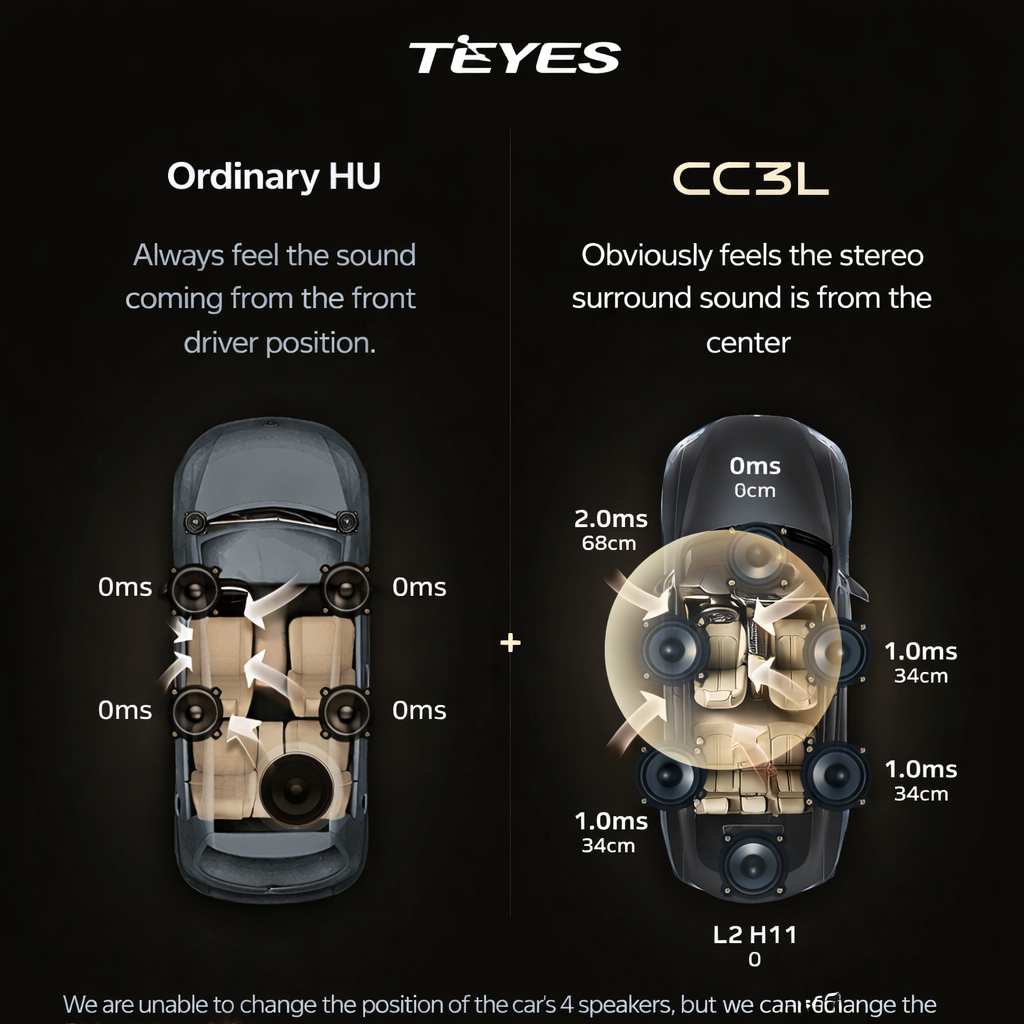

Audio Output
Optical & Coaxial Digital Output
Supports 5.1-Channel Audio Output
(4 Speakers + 1 Subwoofer + 1 Center Speaker)
Gyroscope Yes
Steering Wheel Control
Short Press + Long Press
Bluetooth
Qualcomm QCC3031 QFN
Rear Camera Input
AHD 1920×1080, High Definition
USB
3 × USB 2.0 Ports
Radio Chip
TDA7708 (Netherlands, with RDS)
Supported Accessories
USB DVR
TPMS
Front Parking Sensors
