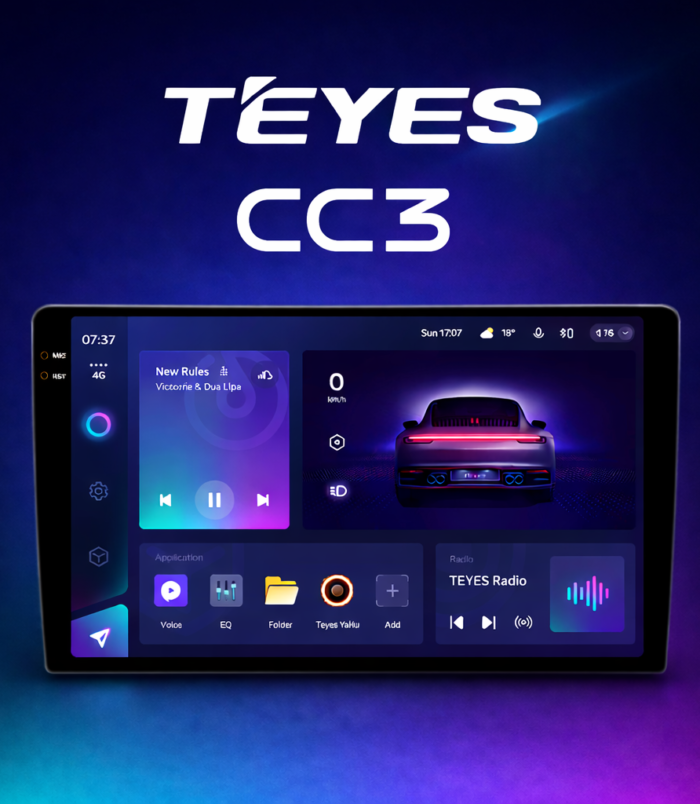

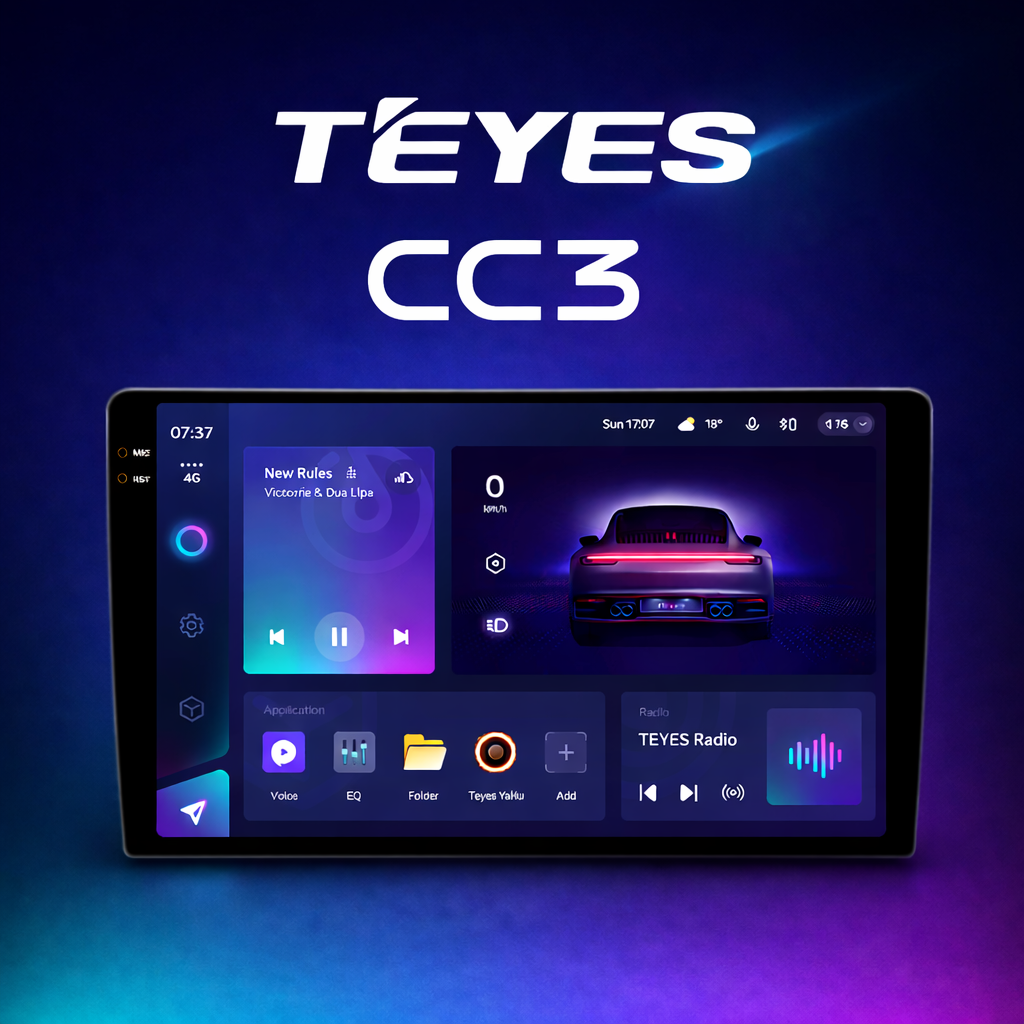

TEYES CC3 – Full Specifications

Processor

Octa-Core 1.6GHz 64-bit
2× Cortex-A75 + 6× Cortex-A55
ARM 12nm Architecture

Memory Options

• 4GB RAM + 32GB ROM

• 4GB RAM + 64GB ROM

• 6GB RAM + 128GB ROM

Note: Due to system files, the actual available ROM capacity may be slightly lower than the stated capacity.

Display

Integrated Quantum In-Cell Display
Bonded Screen & Touch Panel Structure
Quantum Dot QLED Technology

Resolution

1280 × 720

Screen Sizes

9.2” or 10.36”

DSP

ROHM32107
ADAU1701

Internet Connectivity

4G LTE
2.4G WiFi
5G WiFi

Navigation

GPS + BeiDou + GLONASS

Operating System

Android 10
API Level 29

4G Frequency Bands Supported

GSM: GSM850, EGSM900, DCS1800, PCS1900
WCDMA: Band 1, Band 2, Band 5, Band 8
TD-SCDMA: Band 34, Band 39
TDD-LTE: Band 34, Band 38, Band 39, Band 40, Band 41N
FDD-LTE: Band 1, Band 2, Band 3, Band 5, Band 7, Band 8
LTE Additional Bands: Band 20, Band 28A

Power Consumption

Standby Mode ≤ 7mA

After the vehicle is turned off and remains unused for 3 days, TEYES automatically disconnects power and enters full shutdown mode to protect the vehicle battery from drainage.

Audio System

Audio Amplifier Chip

TDA7851

Equalizer

27-Band Professional Equalizer

Audio Processing Features

Bass Enhancement
Time Delay Adjustment
Sound Filter

Audio Output

Optical Digital Output
Coaxial Digital Output
Supports 5.1-Channel Audio Output
(4 Speakers + 1 Subwoofer + 1 Center Speaker)

Connectivity & Hardware Features

External Microphone – Supported
External SIM Card – Supported
Gyroscope – Yes

Steering Wheel Control

Short Press & Long Press Supported

Bluetooth

Qualcomm QCC3031 QFN

Rear Camera Input

AHD 1920 × 1080 (High Definition)

USB

3 × USB 2.0 Ports

Radio Chip

TDA7708 (Netherlands) with RDS Support

Supported Accessories

USB DVR
TPMS (Tire Pressure Monitoring System)
Front Parking Sensors
